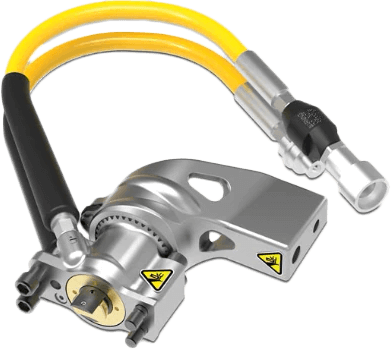

RSL Series Hydraulic Torque Wrench Drive Units

Brand: Enerpac
Request Information
Favorite

Versatile hydraulic torque wrench drive units compatible with RSQ square drive heads and RLP hex cassettes.
Features
  • Innovative design that completely encloses all moving parts and minimizes pinch points
  • 30-35° of operating stroke provides added productivity while avoiding “tool lock on” which is common with some torque wrench designs.
  • Simple robust alloy steel design with just three moving parts for reduced maintenance
  • Robust handles are available for both sides and the tops of cassettes to allow for extra maneuverability
  • Designed to give optimum strength to weight and torque to weight ratios
  • Minimum nose radius for trouble-free tool fit
  • Interchangeable cassette design
  • Wide range of hexagon sizes available for all applications
  • Reaction arm has a simple dial lock for rapid change
  • For use in multiple industrial, energy, and oil and gas applications
  • Accuracy of ±3%
  • One RSL-Hydraulic Drive Unit fits RLP-Hexagon Cassette or RSQ-Drive Drive Cassette.
  • Choose your Enerpac Torque Wrench using the untightening rule of thumb: Loosening torque equals about 250% of tightening torque.
  • Use Enerpac THQ700 Series torque wrench hoses with RSL Series torque wrenches to ensure the integrity of your hydraulic system.

View Details

Specifications

Brand

Square Drive

  • 3/4” - 2-1/2”

Maximum Torque Output

  • 1408 - 28002 ft.lbs (1909 - 37965 Nm)

Minimum Torque

  • 141 - 2800 ft.lbs (191 - 3797 Nm)

Maximum Operating Pressure

  • 10,000 psi (700 bar)

Hexagon Range

  • 7/8” - 2-3/8” (26 - 60 mm)
  • 1-5/16” - 2-15/16” (33 - 75 mm)
  • 1-11/16” - 3-1/8” (46 - 80 mm)
  • 2-3/8” - 3-1/8” (60 - 80 mm)
  • 2-7/16” - 4-5/8” (62 - 110 mm)
  • 2-15/16” - 4-5/8” (75 - 115 mm)
  • 3-1/8” - 6-1/8” (80 - 155 mm)

Weight

  • 3.4 - 22 lbs (1.5 - 10.0 kg)
