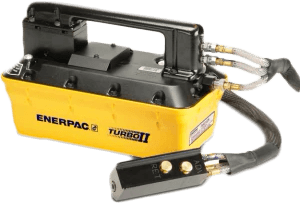

PARG Series - Turbo II Air Hydraulic Pump, Remote 3-Way & 3/3 Manual Valve with Pendant

Brand: Enerpac
Request Information
Favorite

Product Lines: Workholding Tools, Industrial Tools
Features
  • Industrial Tools
    • High efficiency cast aluminum air motor for increased life and reduced air consumption
    • Reinforced heavy-duty reservoir for applications in tough environments
    • High efficiency cast aluminum air motor
    • New generation air saver piston with rugged one-piece design reduces air consumption and operating costs
    • Return-to-tank port for use in remote valve applications
    • Quieter operation – reduced noise level to 76 dBA
    • Operating air pressure: 2,8 - 8,8 bar, enables pump to start at extremely low pressure
    • External adjustable pressure relief valve (behind sight glass)
    • Internal pressure relief valve provides overload protection
    • Air pendant for remote control operation
  • Workholding Tools
    • Turbo II air hydraulic pumps generate the hydraulic pressure you need using the air pressure you have available. The Air Saver Piston reduces air consumption and operating costs.
    • They are ideal for providing the power and speed desired in simple clamping circuits. Turbo II air hydraulic pumps are best suited to medium and lower cycle applications. At only 75 dBA, the Turbo II series helps to keep noise level to a minimum.
    • On-demand stall-restart operation maintains system pressure, providing clamping security
    • External adjustable pressure relief valve (behind sight glass)
    • Internal pressure relief valve provides overload protection
    • Reduced noise level to 75 dBA
    • Operating air pressure: 4-8,5 bar – enables pump to start at low air pressure
    • Reinforced heavy-duty lightweight reservoir for applications in tough environments
    • Five valve mounting options provide flexibility in setup and operation
    • Fully serviceable air motor assembly
    • Includes 5 m air pendant for remote control of single-acting cylinders
    • Note - From 4-8,5 bar air inlet pressure. Performance is significantly diminished below 4 bar. Performance may vary compared to listed values due to seal friction, internal pressure drops and manufacturing tolerances. Be sure to allow some flexibility on air inlet pressure.

View Details

Specifications

Brand

Maximum Operating Pressure

  • 5,000 psi (350 bar)
  • 10,000 psi (700 bar)

Cylinder Compatibility

  • Single-acting

Reservoir Capacity

  • 116 in³ (2100 cm³)
  • 462 in³ (7500 cm³)
  • 127 in³ (2081 cm³)
  • 230 in³ (3770 cm³)

Maximum Flow at Rated Pressure

  • 2.45 litres/min (180 in³/min)
  • 0.10 litres/min (10 in³/min)
  • 1.64 litres/min (120 in³/min)

Power Source

  • Air

Valve Function

  • Advance/Hold/Retract

Output Flow Rate at 0 psi

  • 180 in³/min
  • 120 in³/min

Valve Operation

  • Manual
  • Solenoid

Valve Type

  • 3-Way, 3-Position

Hydraulic to Air Ratio

  • 45:01:00
  • 60:01:00

Pump Control

  • Pendant

Air Consumption

  • 340 litres/min (12 scfm)
  • 227 litres/min

Air Pressure Range

  • 1.7 - 8.6 bar (50-125 psi)
  • 2.8 - 10.3 bar

Weight

  • 22 lbs (10.0 kg)
  • 26 lbs (11.7 kg)
  • 23 lbs (10.4 kg)
  • 58 lbs (26.3 kg)
