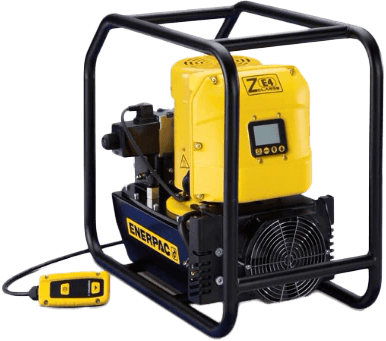

ZE Series Electric Hydraulic Torque Wrench Pumps

Brand: Enerpac
Request Information
Favorite

Auto cycle feature provides continuous cycle operation of the torque wrench as long as the advance button is pressed.
Features
  • Auto-Cycle feature provides continuous cycle operation of the torque wrench as long as the advance button is pressed (pump can be used with or without auto cycle feature)
  • LCD readout provides pressure and torque display and a number of diagnostic and readout capabilities never before offered on a portable electric pump
  • Totally enclosed, fan-cooled industrial electric motors supply extended life and stand up to harsh industrial environments
  • High-strength, molded electrical enclosure protects electronics, power supplies and L CD readout from harsh environments.
  • Includes heat exchanger and roll cage
  • Factory installed heat exchanger and roll cage
  • Flow rate will be approximately 6/5 higher at 60 Hz.
  • Larger reservoirs (8, 10, 20 and 40 litres) are available.

View Details

Specifications

Brand

Reservoir Capacity

  • 277 - 416 in³ (4000 - 8000 cm³)

Usable Oil Capacity

  • 1 - 2 gallon (4 - 8 litres)

Maximum Flow at Rated Pressure

  • 48 in³/min (0.8 l/min)

Output Flow Rate at 100 psi

  • 650 in³/min (8.8 l/min)

Output Flow Rate at 700 psi

  • 500 in³/min (8.1 l/min)

Output Flow Rate at 5000 psi

  • 60 in³/min (0.9 l/min)

Output Flow Rate at 10,000 psi

  • 50 in³/min (0.8 l/min)

Motor Size

  • 1.1 kW

Motor Hertz

  • 50/60 Hz

Motor Phases

  • 1 or 3-Phases

Motor Voltage

  • 115 V
  • 208-240 V

Duty Cycle

  • Extended

Valve Operation

  • Manual
  • Solenoid

Power Source

  • Electric

Sound Level

  • 75 dBa

Relief Adjustment Range

  • 1000 - 11,600 psi (70 - 800 bar)
