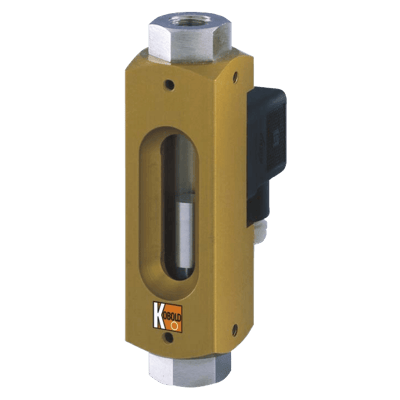

SVN/KSR Flow Switch
Brand: KOBOLD Instruments, IncThe KOBOLD flow switch types SVN and KSR operate on the known suspended float principle of measurement and are suited for liquids and gases. This switch must be fitted vertically with the media flowing from bottom to top.
Specifications
BSP Connection
- G 1/4” Female
Electrical Contacts
- Changeover Contact
- Normally Open
- Reed Contact
Electrical Rating
- 100 V / 0.5 A / 5 W/VA - Reed Contact, Changeover Contact
- 24 V / 0.1 A / 1 W - Reed Contact, N/O Contact
Environmental Protection
- IP67
Gasket Material
- FPM
Maximum System Pressure
- psi: 232.1 (bar: 16, kPa: 1,600)
NPT Connection
- 1/4” NPT Female
Supply Voltage
- 10-30 Vdc, 3-Wire - NPN, N/O Contact
- 7.7-9 Vdc, 2-Wire - NAMUR Switch
Switch Point Range
- Air: 50 to 6,000 Ncm³/minute
- Water: 2 to 160 cm³/minute
- Water: 2 to 250 cm³/minute
Switch Type
- NAMUR
- Transistor - NPN Normally Open Contact
Temperature Range
- 70° C (158° F) - Max.
Wetted Materials
- 303 Stainless Steel
- Borosilicate Glass
