Images are representations only.

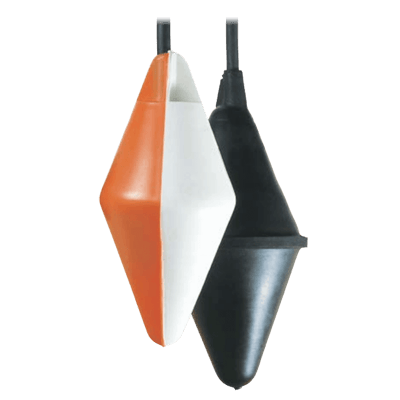

NEC Level Float Switch
Brand: KOBOLD Instruments, IncThe KOBOLD level switches of model NEC have been developed for level monitoring of liquids and for direct pump control for all industrial applications.
The float is supplied with a mechanical microswitch with very large switching capacity.
The NEC comprises a stable plastic housing made of polypropylene with a total of five cavities sealed back-to-back. The instruments are thus practically unsinkable even when physically damaged.
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 3
- Float Material / Cable - Polypropylene / 32.8 Feet (10 metres) Hypalon Cable
25+ In Stock
$2,230.00 CAD
Does not ship to OH, United States
- Float Material / Cable - Polypropylene Hypalon Coated / 16.4 Feet (5 metres) Hypalon Cable
25+ In Stock
$1,092.00 CAD
Does not ship to OH, United States
- Float Material / Cable - Polypropylene / 16.4 Feet (5 metres) Hypalon Cable
8 In Stock
$843.00 CAD
Does not ship to OH, United States
Specifications
Applications
- Direct Pump Control for All Industrial Applications
- Level Monitoring of Liquids
Cable Length
- 16.4 to 328.1 feet (5 to 100 metres)
- 32.81 feet (10 metres)
Cable Material
- Hypalon
Electrical Contacts
- Changeover Contact
Electrical Rating
- 16 A Resistive at 250 Vac
- 6 A Inductive at 250 Vac
Enclosure / Body Material
- Polypropylene
Enclosure Finish
- Hypalon Coated - Float
Environmental Protection
- IP68
Materials of Construction
- Polypropylene - Float Material
Maximum System Pressure
- psi: 80 (kPa: 550, bar: 5.5)
Media
- Aggressive Liquids
Output Function
- Microswitch - Contact
Switch Type
- Changeover Switch
Temperature Range
- Maximum
