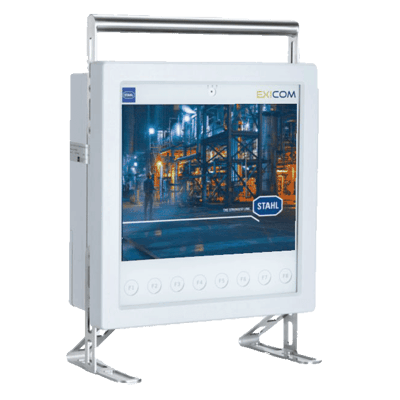

The MT-638-DVI3 HMI series includes KVM systems for hazardous zones 2 and 22.
The systems are rugged, i.e. extremely robust: IP66, shock, vibration and seawater-proof and suitable for temperatures ranging from -40 to +65 °C. As an option, the 15" display with a resolution of 1024 x 768 pixels is also available as a sunlight-readable version.
The display and additional function keys are well-protected underneath a chemically hardened and non-glare glass screen.
Further options include a camera, a Bluetooth antenna and a projected capacitive touchscreen with multi-touch function.
Depending on the distance to be crossed, choose from the following types of data transmission technology: via copper cable up to 150 m, via multimode fibre optic up to 550 m or via single mode fibre optic up to 10 km.
Features- KVM System, 15" display, optional sunlight-readable 1200 cd/m²
- Rugged design: IP66, shock, vibration and seawater-proof, temperature range -40 °C to +65 °C
- Compact, lightweight HMI design < 18 kg / 40 lbs
