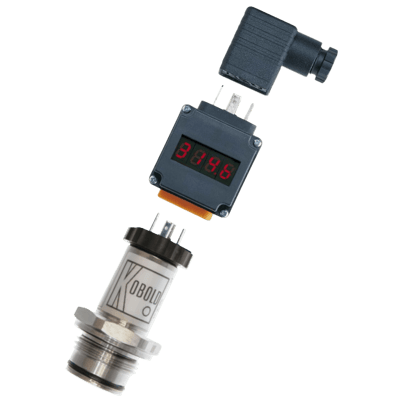

SEN-3255 / SEN-3256 Pressure Transducer
Brand: KOBOLD Instruments, IncThe Heavy Duty Industrial pressure transducers are leaders among pressure transducers. The flush type diaphragm allows the use with aggressive, viscous or crystallizing process fluids. This type of sealing permits cleaning of the process connections without residues.
Case and wetted parts are stainless steel. Therefore the are extremely resistant against aggressive media and fulfill the most demanding requirements.
Two adjustment potentiometers for zero and span render possible the use in most difficult applications like measurement of the hydrostatic column.
Specifications
Accuracy
- 0.25 - Accuracy Class
- 0.5 - Accuracy Class
Ambient Temperature Range
- -20° to 80° C (-4° to 176° F)
Applications
- Apparatus Engineering Equipment
- Development & Laboratory
- Plant Construction
- Process Engineering
BSP Connection
- G 1” Male
- G 1/2” Male
Compensated Temperature
- 0° to 80° C (32° to 176° F)
Electrical Connectors
- Plug According to DIN 43650
Enclosure / Body Material
- 304 Stainless Steel, 1.4301
Environmental Protection
- IP65
Load Resistance
- > 10 kiloohms for 0-10 V
Output
- 0-10 Vdc
- 4-20 mA, 2-Wire
Power Requirement
- 10-30 Vdc - Auxiliary Power
- 14-30 Vdc for Output 0-10 V - Auxiliary Power
Pressure Range
- bar: 0 to 25
- kPa: 0 to 2,500
- psi: 0 to 362.6
Pressure Type
- Absolute
Process Temperature
- -30° to 100° C (-22° to 212° F) - Medium Temperature
Repeatability
- ≤ ± 0.05 % of Full Scale
Response Time
- ≤ 1 millisecond (within 10 to 90 % of Full Scale)
Sensor / Probe Type
- Piezoresistive - Sensor Element
Span & Zero Adjustments
- ± 10 % - Adjustability: Zero Point & Measuring Span
Stability
- ≤ ± 0.2 % of Full Scale Per Year
Storage Temperature
- -40° to 100° C (-40° to 212° F)
Temperature Effect
- ± 0.2 %/10 K - Temperature Influence on Zero Point & Span
Temperature Range
- Maximum
Wetted Materials
- 316Ti Stainless Steel, 1.4542
- NBR
