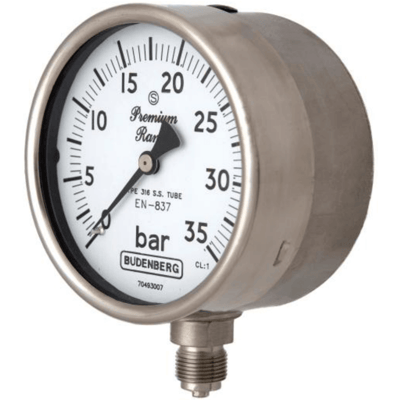

966GP Bourdon Tube Pressure Gauge

Brand: Budenberg

An impressive technical specification and wide range of standard features make the premium the obvious choice for a wide range of process and engineering applications.

Embodying an all 316 Stainless Steel construction, the 966GP incorporates a solid baffle wall and blow out back for operator protection and standard features such as IP67 environmental protection, not normally available on comparative units.

An extensive choice of options can be fitted to any standard unit whilst fully custmised units can be manufactured to suit any customer's requirements.

Monel wetted parts, can be provided for customers who seek units to meet NACE-01-75 specification see 966MGP.

Models matching criteria: 2
Budenberg Bourdon Tube Pressure Gauge
50+ In Stock
$1,473.00 CAD
Does not ship to OH, United States
Budenberg Bourdon Tube Pressure Gauge
10 In Stock
$2,140.00 CAD
Does not ship to OH, United States

Specifications

Approvals & Certifications

  • PED

BSP Connection

  • 1/2” BSP Male
  • 3/8” BSP Male

Environmental Protection

  • IP67

Fill Material

  • Dry
  • Glycerin

NACE & NIST

  • NACE

NPT Connection

  • 1/2” NPT Male

Pressure Type

  • Gauge

Scale Range

  • bar: 0 to 1,400
  • kPa: 0 to 140,000
  • psi: 0 to 20,310

Size

  • 4” (100 mm)
  • 6” (150 mm)

Wetted Materials

  • Monel

Mounting

  • Direct, Surface and Flush

Case & Bezel Material

  • 316L Stainless Steel

Materials of Construction

  • Pressure Element: 316 Stainless Steel
  • Dial: White Anodised Aluminium
  • Pointer & Movement: Stainless Steel
  • Window: 3 mm Laminated Safety Glass (Standard)
  • Window: Acrylic Plastic

Accuracy Class

  • Option: 0.5% of FSD as Defined in EN837-1
  • CL:1 1.0% of FSD as Defined in EN837-1

Operating Temperature

  • -20° to +90° C

Storage Temperature

  • -40° to 100° C
