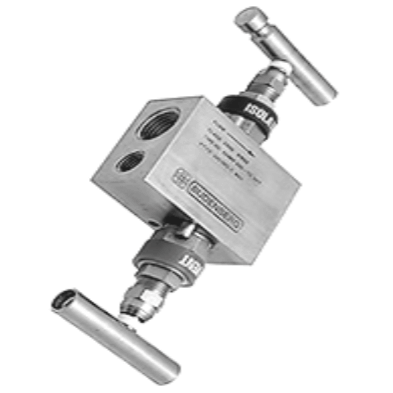

62NRF Two Valve Instrument Manifold

Brand: Budenberg

The 62NRF range of Two Valve Manifolds provide a Block and Bleed function to any instrument installation or application.

Based around the Budenberg 6N Needle Valve technology the versatility of these manifolds enable isolation, calibration and venting within a single unit thereby eliminating potential leak paths.

The 62NRF range includes a full range of configurations and connections allowing them to be used on a full range of instrumentation including Transmitters, Gauges, Switches etc.

All units incorporate the Budenberg 6N high temperature, high pressure valve head assembly that is suitable for pressures psig: 0 to 10,000 (kPa: 0 to 68,950, bar: 0 to 689.5) and temperatures 0° to 450° C (0° to 842° F).

These lightweight compact units can be readily manufactured, modified or configured to suit any individual application or customer requirement.

Specifications

Approvals & Certifications

  • CE

BSP Connection

  • 1/2” BSPP Female
  • 1/4” BSPP Female

NACE & NIST

  • NACE

NPT Connection

  • 1/2” NPT Female
  • 1/4” NPT Female

Packing Material

  • Graphoil
  • PTFE

Welded Connection

  • 1/2” Socket Weld End Female
  • 1/4” Socket Weld End Female
  • 3/8” Socket Weld End Female

Material of Construction

  • 316 Stainless Steel
  • Monel and Hastelloy

Maximum Pressure

  • 6,000 psig
  • 10,000 psig

Operating Temperature

  • -20° to 450° C

Stem Packing Material

  • PTFE
  • Grahoil

  • Oil and Gas
  • Chemical
  • Petrochemical
  • Power Generation
  • Water and Waste Water
