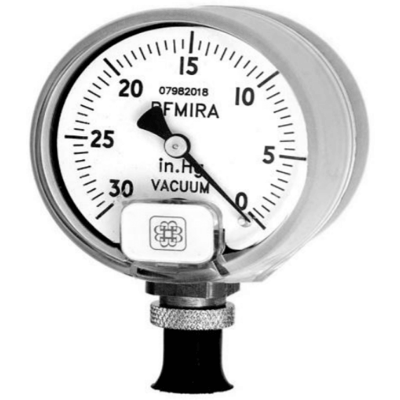

269 BFMIRA Vacuum Gauge

Part Number: 269 Brand: Budenberg

Budenberg BFMIRA Vacuum Gauge

Price
$2,125.00 CAD
Stock
25+ In Stock

The Model 269 is a high specification vacuum gauge specifically designed for the estimation of the intensity of vacuum in a food can.

Using an ordinary vacuum gauge fitted with a piercer is usually very inaccurate and does not allow for the dilution of the head space vacuum by entry of air at atmospheric pressure from the gauge.

Ordinary vacuum gauges therefore always give a lower reading than the vacuum which existed in the head space before the can was pierced, and if the head space is small the error is compounded.

This gauge was developed by the British Food Manufacturing Industries Research Association and it overcomes the disabilities in an ingenious manner.

A circular calculator can be provided with the instrument to carry out the calculations in units of ins Hg, cm Hg and Kpa.

Specifications

Approvals & Certifications

  • PED

Environmental Protection

  • IP67

Pressure Range

  • bar: 0 to 1.01
  • Inches Hg: 0 to 30
  • kPa: 0 to 101.6
  • psi: 0 to 14.7

Pressure Type

  • Gauge

Size

  • 2-1/2” (63 mm)

Mounting

  • Direct

Case Material

  • Polycarbonate

Material of Construction

  • Pressure Element: Phosphor Bronze
  • Dial: White Anodised Aluminium
  • Pointer: Stainless Steel
  • Movement: 316L Stainless Steel
  • Window: 3 mm Laminated Safety Glass (Standard)
  • Window: Acrylic Plastic Optional
  • Puncturing Needle and Ferrule: 316 Stainless Steel Neddle & Rubber Ferrule

Accuracy Class

  • CL:1 1.0% of FSD as Defined in EN837-1

Operating Temperature

  • -20° to +90° C

Storage Temperature

  • -40° to 100° C

  • Food and Beverage
