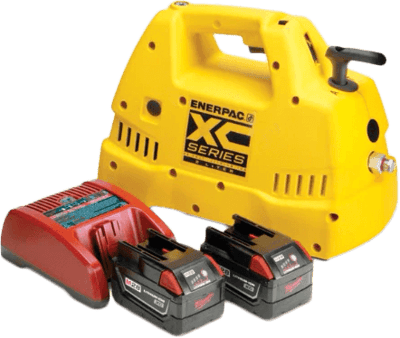

XC Series Cordless Hydraulic Battery Powered Pumps

Brand: Enerpac

The XC-Series cordless pump is ideal for jobs that require a combination of portability, speed, and safety.

These cordless pumps are perfect for remote locations without access to power, but also indoors where trip hazards, ergonomics or size is a concern.

The XC-Series cordless pump is compatible with all Enerpac hydraulic tools and small to medium sized cylinders.
Features
  • Lightweight design with integrated handle and carrying strap for portability
  • Bladder reservoir prevents contamination and allows pump usage in any position
  • Powerful ½ horsepower motor and 28 volt Lithium-Ion battery deliver exceptional speed and run time
  • High-strength fiberglass reinforced composite shroud for superior durability in demanding job site environments
  • Cordless technology eliminates tripping hazards found in other electric or air powered pumps
  • The Lithium-Ion battery provides superior run time, even under extreme job site conditions.
    • 279 cuts of 3/8 inch reinforcing bar using the WHC750 Cutter
    • 112 lifts with the WR5 Spreader
    • 44 splits on 1-inch, grade 8 nuts using the NC3241 Nut Splitter
    • 28 lifts of an RC104
    • Actual number of cycles per charge will vary depending on condition of tool, battery and ambient conditions. Battery life with double-acting tools is approximately 75% of that for comparable, single-acting tools.
  • The XC-Series cordless pump is CSA and CE compliant

Specifications

Brand

Maximum Operating Pressure

  • 10,000 psi (700 bar)

Cylinder Compatibility

  • Single-Acting
  • Double-Acting

Reservoir Capacity

  • 60 - 120 in³ (1000 - 2000 cm³)

Usable Oil Capacity

  • 60 - 120 in³ (1.0 - 2.0 litres)

Maximum Flow at Rated Pressure

  • 15 in³/min (0.25 l/min)

Output Flow Rate No Load

  • 2.0 l/min (125 in³/min)

Output Flow Rate Load

  • 0.25 l/min (15 in³/min)

Output Flow Rate at 2000 psi (140 bar)

  • 0.50 l/min (30 in³/min)

Output Flow Rate at 10,000 psi (700 bar)

  • 0.25 l/min (15 in³/min)

Number of Outlets

  • 1 or 2

Motor Size

  • 0.5 hp

Duty Cycle

  • Intermittent

Valve Function

  • Advance / Neutral / Retract
  • Advance / Hold / Retract

Valve Operation

  • Manual
  • Solenoid

Valve Type

  • 3-Way, 2-Position
  • 4-Way, 3-Position
  • Dump and Hold

Power Source

  • Battery

Charger Voltage

  • 115 V or 230 V

Weight

  • 19.5 - 25 lbs (9 - 11 kg)
