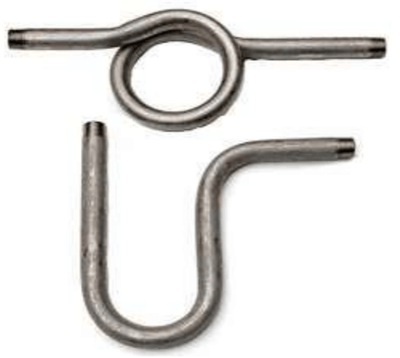

CMT Pressure Gauge Syphon Accessory
Brand: BudenbergThe Budenberg Syphons were designed to meet the demand for protection of instruments such as pressure gauges, where the applications have high temperatures that can cause damage or inaccurate readings due to elevated temperatures.
They collect condensate from the high temperature media inside the syphon, which prevents direct contact with the pressure elements and dissipates the heat.
Upon installation the syphon is normally filled with the condensate liquid, in the case of steam, water is used. Suitable for all media that is resistant to 316 Stainless Steel.
Specifications
Brand
Body Material
- 316 Stainless Steel
BSP Connection
- 1/2” BSP Male
- 3/8” BSP Male
NPT Connection
- 1/2” NPT Male
- 3/8” NPT Male
Pressure Range
- Up to 80 bar
Temperature Range
- Up to 300° C
