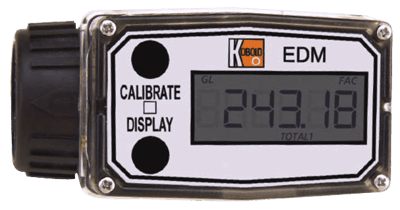

EDM Electronic Turbine Wheel Flowmeter and Counter
Brand: KOBOLD Instruments, IncThe KOBOLD EDM is very versatile and can be used in many applications. Its built-in, replaceable batteries render it independent of external power supplies. The EDM can be adjusted for use with liquids other than water, because it can be calibrated in situ.
Displaying prices & availability for Ohio, United States in CAD. Change location.
Featured
- Featured
- Quantity In Stock
- Price
- SKU / Model Number
Models matching criteria: 10
- Material of Construction - Aluminum
- Measuring Range / Connection - 10 to 190 L/min to Water, Rc 1" (G 1") Female
50+ In Stock
$1,551.00 CAD
Does not ship to OH, United States
- Material of Construction - Stainless Steel
- Measuring Range / Connection - 8 to 80 L/min to Water, Rc 3/4" Female
50+ In Stock
$489.00 CAD
Does not ship to OH, United States
- Material of Construction - Stainless Steel
- Measuring Range / Connection - 40 to 400 L/min to Water, Rc 1-1/2" Female
50+ In Stock
$2,260.00 CAD
Does not ship to OH, United States
- Material of Construction - Stainless Steel
- Measuring Range / Connection - 80 to 800 L/min to Water, Rc 2" Female
50+ In Stock
$993.00 CAD
Does not ship to OH, United States
- Material of Construction - Nylon
- Measuring Range / Connection - 10 to 190 L/min to Water, Rc 1" (G 1") Female
50+ In Stock
$1,628.00 CAD
Does not ship to OH, United States
- Material of Construction - Stainless Steel
- Measuring Range / Connection - 20 to 200 L/min to Water, Rc 1" Female
25+ In Stock
$2,304.00 CAD
Does not ship to OH, United States
22 In Stock
$873.00 CAD
Does not ship to OH, United States
21 In Stock
$2,506.00 CAD
Does not ship to OH, United States
- Material of Construction - Stainless Steel
- Measuring Range / Connection - 4 to 40 L/min to Water, Rc 1/2" Female
20 In Stock
$566.00 CAD
Does not ship to OH, United States
7 In Stock
$1,643.00 CAD
Does not ship to OH, United States
Specifications
Accuracy
- ± 1 % of Reading for 1-1/2" & 2" Connection
- ± 1.5 % of Reading for 3/4" & 1" Connection
- ± 2 % of Reading for 1/2" Connection
Applications
- Additivs, Fuels, Petrol
- Food Industry
- Non-Aggressive Chemicals
- Pharmaceuticals
- Water & Demineralised Water
Axle Material
- Tungsten Carbide
Battery Life
- 5-Years - Supply
Bearing Material
- Ceramic
BSP Connection
- G 1" Female
- 1" BSPT Female
- 1/2" BSPT Female
- 1-1/2" BSPT Female
- 2" BSPT Female
- 3/4" BSPT Female
Calibration
- Field Calibration
Display
- 6-Segment Display - Floating Point
- LCD Display - 10 mm High Digits
Enclosure, Body Material
- 316 Stainless Steel
- Aluminum
- Nylon
Environmental Protection
- IP65
Flow Rate
- 8.48 to 1,695 scfh (4 to 800 L/minute) for Liquids
Gasket Material
- Rubber
Maximum System Pressure
- psi: 1,450 (kPa: 10,000, bar: 100)
Media
- Liquids & Gases
Mounting
- Nylon
- PVDF
Power Requirement
- 2 Lithium Batteries - Replaceable without Data Loss
Repeatability
- ± 0.1 %
Ring Material
- 316 Stainless Steel - Locking Ring
- 316L Stainless Steel - Locking Ring
Temperature Range
- -10° to 60° C (14° to 140° F)
Wetted Materials
- Ferrite - Pulse Generator
- Nylon
- PVDF - Turbine Material
