Budenberg Monoflange Isolation Valve, 6M and 10M
Images are representations only.

6M & 10M Monoflange Isolation Valve

Brand: Budenberg
Request Information
Favorite

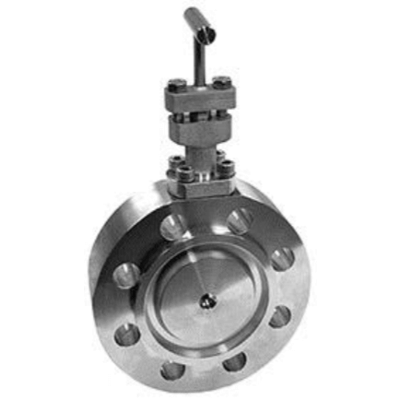

The 6M adn 10M is a range of lightweight Monoflange isolation valves that incorporate an Outside Screw and Yoke bolted bonnet valve designed to meet the requirements of piping class installations in accordance with ASME / ANSI standards.

The compact design incorporates a OSandY Primary Isolation valve and outlet into a single one-piece body ensuring that potential leakage paths are kept to an absolute minimum but offers a significant weight and component cost savings when compared to other conventional installation solutions.

All units incorporate the Budenberg 6O Heavy Duty OSandY Valve assembly that features all metal seating and true metal to metal body / bonnet connections. Monoflanges are manufactured in a full range of materials, flange types and ratings as well as having a choice of flange, screw or kidney flange outlet connections.

Units can undergo full material and product testing / certification to suit any project or customer requirement.

View Details

Specifications

Brand

Approvals & Certifications

  • NORSOK

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 10,000# ANSI/ASME B16.5
  • 1-1/2” (DN 40) - 150# ANSI/ASME B16.5
  • 1-1/2” (DN 40) - 1500# ANSI/ASME B16.5
  • 1-1/2” (DN 40) - 2500# ANSI/ASME B16.5
  • 1-1/2” (DN 40) - 300# ANSI/ASME B16.5
  • 1-1/2” (DN 40) - 3000# ANSI/ASME B16.5
  • 1-1/2” (DN 40) - 5000# ANSI/ASME B16.5
  • 1-1/2” (DN 40) - 600# ANSI/ASME B16.5
  • 1-1/2” (DN 40) - 900# ANSI/ASME B16.5

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 10,000# ANSI/ASME B16.5
  • 1” (DN 25) - 150# ANSI/ASME B16.5
  • 1” (DN 25) - 1500# ANSI/ASME B16.5
  • 1” (DN 25) - 2500# ANSI/ASME B16.5
  • 1” (DN 25) - 300# ANSI/ASME B16.5
  • 1” (DN 25) - 3000# ANSI/ASME B16.5
  • 1” (DN 25) - 5000# ANSI/ASME B16.5
  • 1” (DN 25) - 600# ANSI/ASME B16.5
  • 1” (DN 25) - 900# ANSI/ASME B16.5

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 10,000# ANSI/ASME B16.5
  • 1/2” (DN 15) - 150# ANSI/ASME B16.5
  • 1/2” (DN 15) - 1500# ANSI/ASME B16.5
  • 1/2” (DN 15) - 2500# ANSI/ASME B16.5
  • 1/2” (DN 15) - 300# ANSI/ASME B16.5
  • 1/2” (DN 15) - 3000# ANSI/ASME B16.5
  • 1/2” (DN 15) - 5000# ANSI/ASME B16.5
  • 1/2” (DN 15) - 600# ANSI/ASME B16.5
  • 1/2” (DN 15) - 900# ANSI/ASME B16.5

Flange Size - 1/4” (DN 8)

  • 1/4” (DN 8) - 10,000# ANSI/ASME B16.5
  • 1/4” (DN 8) - 150# ANSI/ASME B16.5
  • 1/4” (DN 8) - 1500# ANSI/ASME B16.5
  • 1/4” (DN 8) - 2500# ANSI/ASME B16.5
  • 1/4” (DN 8) - 300# ANSI/ASME B16.5
  • 1/4” (DN 8) - 3000# ANSI/ASME B16.5
  • 1/4” (DN 8) - 5000# ANSI/ASME B16.5
  • 1/4” (DN 8) - 600# ANSI/ASME B16.5
  • 1/4” (DN 8) - 900# ANSI/ASME B16.5

Flange Size - 2-1/16” (DN 52)

  • 2-1/16” (DN 52) - 10,000# ANSI/ASME B16.5
  • 2-1/16” (DN 52) - 150# ANSI/ASME B16.5
  • 2-1/16” (DN 52) - 1500# ANSI/ASME B16.5
  • 2-1/16” (DN 52) - 2500# ANSI/ASME B16.5
  • 2-1/16” (DN 52) - 300# ANSI/ASME B16.5
  • 2-1/16” (DN 52) - 3000# ANSI/ASME B16.5
  • 2-1/16” (DN 52) - 5000# ANSI/ASME B16.5
  • 2-1/16” (DN 52) - 600# ANSI/ASME B16.5
  • 2-1/16” (DN 52) - 900# ANSI/ASME B16.5

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 10,000# ANSI/ASME B16.5
  • 2” (DN 50) - 150# ANSI/ASME B16.5
  • 2” (DN 50) - 1500# ANSI/ASME B16.5
  • 2” (DN 50) - 2500# ANSI/ASME B16.5
  • 2” (DN 50) - 300# ANSI/ASME B16.5
  • 2” (DN 50) - 3000# ANSI/ASME B16.5
  • 2” (DN 50) - 5000# ANSI/ASME B16.5
  • 2” (DN 50) - 600# ANSI/ASME B16.5
  • 2” (DN 50) - 900# ANSI/ASME B16.5

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 10,000# ANSI/ASME B16.5
  • 3” (DN 80) - 150# ANSI/ASME B16.5
  • 3” (DN 80) - 1500# ANSI/ASME B16.5
  • 3” (DN 80) - 2500# ANSI/ASME B16.5
  • 3” (DN 80) - 300# ANSI/ASME B16.5
  • 3” (DN 80) - 3000# ANSI/ASME B16.5
  • 3” (DN 80) - 5000# ANSI/ASME B16.5
  • 3” (DN 80) - 600# ANSI/ASME B16.5
  • 3” (DN 80) - 900# ANSI/ASME B16.5

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - 10,000# ANSI/ASME B16.5
  • 3/4” (DN 20) - 150# ANSI/ASME B16.5
  • 3/4” (DN 20) - 1500# ANSI/ASME B16.5
  • 3/4” (DN 20) - 2500# ANSI/ASME B16.5
  • 3/4” (DN 20) - 300# ANSI/ASME B16.5
  • 3/4” (DN 20) - 3000# ANSI/ASME B16.5
  • 3/4” (DN 20) - 5000# ANSI/ASME B16.5
  • 3/4” (DN 20) - 600# ANSI/ASME B16.5
  • 3/4” (DN 20) - 900# ANSI/ASME B16.5

Flange Size - 3/8” (DN 10)

  • 3/8” (DN 10) - 10,000# ANSI/ASME B16.5
  • 3/8” (DN 10) - 150# ANSI/ASME B16.5
  • 3/8” (DN 10) - 1500# ANSI/ASME B16.5
  • 3/8” (DN 10) - 2500# ANSI/ASME B16.5
  • 3/8” (DN 10) - 300# ANSI/ASME B16.5
  • 3/8” (DN 10) - 3000# ANSI/ASME B16.5
  • 3/8” (DN 10) - 5000# ANSI/ASME B16.5
  • 3/8” (DN 10) - 600# ANSI/ASME B16.5
  • 3/8” (DN 10) - 900# ANSI/ASME B16.5

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 10,000# ANSI/ASME B16.5
  • 4” (DN 100) - 150# ANSI/ASME B16.5
  • 4” (DN 100) - 1500# ANSI/ASME B16.5
  • 4” (DN 100) - 2500# ANSI/ASME B16.5
  • 4” (DN 100) - 300# ANSI/ASME B16.5
  • 4” (DN 100) - 3000# ANSI/ASME B16.5
  • 4” (DN 100) - 5000# ANSI/ASME B16.5
  • 4” (DN 100) - 600# ANSI/ASME B16.5
  • 4” (DN 100) - 900# ANSI/ASME B16.5

NACE & NIST

  • NACE MR-1705, EN 15156 or MR-0103

NPT Outlet

  • 1/2” NPT Female

Stem Packing Material

  • Graphoil
  • RPTFE/PTFE

Bore Size

  • 6 mm (Standard)
  • 8 mm

Temperature Rating

  • -54° to +538° C

Operating Pressure

  • Max 10,000 psi (690 barg)

Material of Construction

  • 316 Stainless Steel
  • Carbon Steel
  • Duplex
  • Super Duplex
  • Monel
  • Hastelloy
  • Titanium
  • Inconel 625/825

  • Oil and Gas
  • Petrochemical

Documentation

Data Sheets

show more
