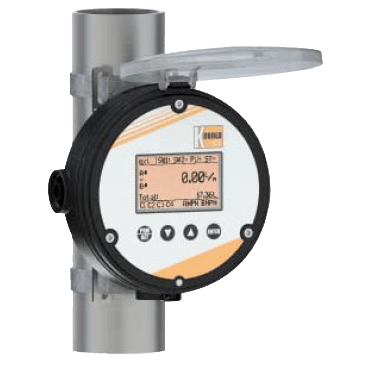

ZOK Counter and Dosing Electronic
Brand: KOBOLD Instruments, Inc
The electronic units ZOK-Xx are specifically designed for the calculation, display and transfer of calculations and flow rates of flow meters with pulse or frequency outputs. The instruments display flow rate, day counter (resettable) and total counter in the operator-selected units.
A clear multilingual menu guides you through the programming of the device that largely eliminates the requirement of constant usage of operating manual.
All user-specific program settings are retained even when changing the battery. The electronics options ZOK-ZxK are weather resistant and adequately reflect IP66 / 67 (NEMA 4X).
The electronics is housed in a UV-resistant, glass-filled nylon housing with stainless steel screws and FPM seals. The option ZOK-ZxP is in a panel housing 96x96 mm with protection class IP44.
The option ZOK-ZxF is available in powder coated aluminum extruded housing with plastic lids and appropriate protection class IP 66/67.
The instruments are suitable for harsh indoor or outdoor environments and comply with EU Directive 2004/108/EC (Electromagnetic Compatibility).
Specifications
Brand
Accuracy
- < 0.1 %
Ambient Temperature Range
- 0° to 60° C (32° to 140° F) - ZOK-E
- -20° to 80° C (-4° to 176° F) - ZOK-Z
Battery Life
- 1-Year
- 5-Years - Battery Life in the Data Backup Operation
Cable Entry
- 1/2” NPT
- M20 x 1.5
Consumption
- 40 mA - Max.
Display
- 128 x 64 Graphic LCD
- 5-Digits
- 6 mm - Size of Main Display Value
- 8-Digit LCD
Electrical Connectors
- Plug in Terminal
Enclosure / Body Material
- Plastic
Environmental Protection
- IP20
- IP65
- IP66
- IP67
Input
- Active
- NAMUR
- NPN/PNP Pulse
- Reed Switch
Mounting
- Meter Mounting
- Panel Mount
- Pipe
- Surface
- Wall Mounted
NPT Connection
- 1/2” NPT
Output
- 30 mA - Sensor Supply
- 4-20 mA - Analog Output
Power Requirement
- 3.6 V / 2200 mAh - Battery Data Backup & Battery Operation
Supply Voltage
- 5 to 32 Vdc - without Using the Analog Output
- 8 to 32 Vdc - with Using the Analog Output
- 8.2 Vdc - Sensor Supply
