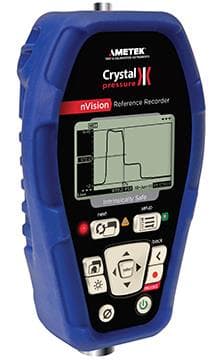

nVision Reference Recorder
Brand: AMETEK, IncAccurate enough to replace a deadweight tester
Rugged enough to sit in 3 feet of water
Portable enough to complete calibrations anywhere
nVision lets you visualize measurements graphically, with or without a pc, in real time as it is being recorded.
It is much easier to identify trends or anomalies visually, than in tables of data or spreadsheets.
Features- Differential Pressure with up to 0.025% of reading accuracy
- Switch, Voltage, Current, and Temperature
- 500,000 data points - 10 readings per second from 2 modules
- Connects to a PC to view live readings or export to tamper proof digital records
- Compensates accuracy for temperature effects from -20° to 50° C
- Includes a calibration certificate with test data at 5 different temperatures from our A2LA accredited laboratory
Specifications
Brand
Operating Temperature
- -20° to 50° C (-4° to 122° F)
Storage Temperature
- -40° to 75° C (-40° to 167° F)
Display
- Screen: 255 x 1600 Pixel Graphical Display
- Display Rate: 4 Readings/Second (Standard), Up to 10 Readings/Second (Recording)
Power
- 4 x AA: 200 Hours, Typical
- Ultra Low Power: Up to 60 Days, Typical
Data / Communication
- Digital Interface: Mini-USB
Data Logging
- Capacity: Approximately 1,000,000 Data Points
- Storage Type: non-volatile Flash Memory
- Fastest Interval: 10 Per Second
- Slowest Interval: 1 Per Hour
Housing
- Impact Resistant Injection Molded
Environmental Protection
- IP67
- IP66
Keypad and Labels
- UV Resistant Polyester
Mounting
- M4 x 0.7 [8 mm (0.31”)] Deep Threaded Insert Mounting Locations
Certifications & Approvals
- ATEX
- CE
- cCSAus
- IEC IECEx
- DNV
Accuracy
- Current & Voltage Measurement: ± (0.015% of rdg + 0.002 mA)
- Voltage (VDC) Input: ± (0.015 % of rdg + 0.002 VDC)
- Temperature Measurement: ± (0.015% of rdg + 0.02 Ω)
