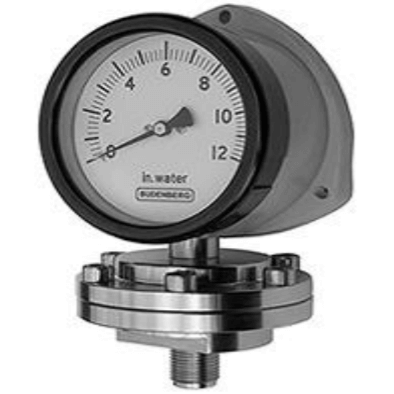

P91/CSE 100 mm Schaffer Diaphragm Gauge

Part Number: P91/CSE 100 mm Brand: Budenberg

Budenberg Schaffer Diaphragm Gauge

Price
$1,272.00 CAD
Stock
50+ In Stock

The model P91/SE Schaffer Diaphragm gauges are manufactured with a special DMC (Dough Moulding Compound) safety case and are designed for use on slurries, viscous or corrosive fluids that would normally attack or block standard bourdon tubes.

Implementing specialist materials for both the connection and diaphragm enable the Shaffer Diaphragm gauge to be configured for use on any gaseous or liquid media including suspended solids or powders.

The direct drive from the diaphragm to the movement ensures a more positive indication of pressure than other models of tube gauges.

Offering a full range of screwed connection sizes and materials, Schaffer Diaphragm gauges can operate at pressure ranges as low as 30 mBar with the option to permit units to withstand a maximum pressure of 70 bar.

Specifications

Approvals & Certifications

  • PED

BSP Connection

  • 1/2” BSP Male
  • 3/8” BSP Male

Environmental Protection

  • IP65

NPT Connection

  • 1/2” NPT Male

Pressure Range

  • bar: 0 to 25
  • kPa: 0 to 25,000
  • psi: 0 to 362.6

Pressure Type

  • Compound Pressure
  • Gauge
  • Vacuum

Size

  • 4” (100 mm)

Mounting

  • Direct and Surface
  • Option: Flush Mounting

Case/Bezel Material

  • DMC (Dough Moulding Compound)

Connection Material

  • 316 Stainless Steel Standard
  • Options: Carbon Steel, Monel, Titanium, Hastelloy, Tantalum
  • Lining Options: PTFE, Halar, PDA

Diaphragm Material

  • 316 Stainless Steel Standard
  • Options: Monel, Tantalum, Hastelloy, Silver or PTFE Protected

Accuracy Class

  • 1.0% of FSD as Defined in EN837-1
  • 1.5% of FSD If Diaphragm Is Protected

Materials of Construction

  • Dial: White Anodised Aluminium
  • Pointer: Aluminum
  • Window: Laminated Safety Glass (Standard)
  • Window: Acrylic Plastic
  • Movement: Brass

Operating Temperature

  • -20° to +90° C

Storage Temperature

  • -40° to 100° C
