Budenberg Monoflange Valve, 6MN and 10MN
Images are representations only.

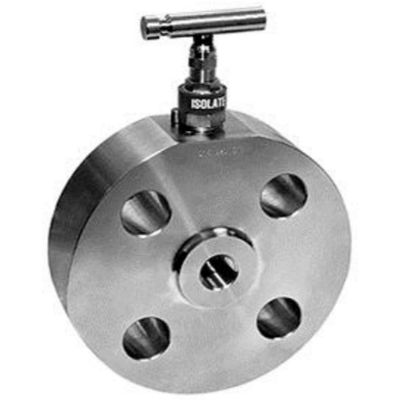

6MN & 10MN Single Block Monoflange Valve

Brand: Budenberg

The 6MN and 10MN is a range of lightweight Monoflange isolation valves that are ideally suited to a wide range of instrumentation applications via standard flanged pressure take-off points.

The compact design incorporates the Isolation valve and outlet into a single one-piece body. This not only ensures that potential leakage paths are kept to an absolute minimum but offers significant weight and component cost savings when compared to other conventional installation solutions.

All units incorporate the Budenberg 6N Heavy Duty Needle Valve assembly that features all metal seating and true metal to metal body / bonnet connections.

Monoflanges are manufactured in a full range of materials, flange types and ratings as well as having a choice of flange, screw or kidney flange outlet connections.

Units can undergo full material and product testing / certification to suit any project or customer requirement.

Maximum Pressure

Connection

Flange Size

Flange Rating

Connection Type

O/P Size

Material

Options

View Details
Part Number / SKU

6MNF4-150RF4S

  • Maximum Pressure

    6,000 psi CWP

  • Connection

    Flange x Flange

  • Flange Size

    1/4"

  • Flange Rating

    150 lbs

  • Connection Type

    Raised Face

  • O/P Size

    1/4"

  • Material

    316 Stainless Steel

Specifications

Brand

Approvals & Certifications

  • NORSOK

Flange Size - 1-1/2” (DN 40)

  • 1-1/2" (DN 40) - 10,000# ANSI / ASME B16.5
  • 1-1/2" (DN 40) - 150# ANSI / ASME B16.5
  • 1-1/2" (DN 40) - 1500# ANSI / ASME B16.5
  • 1-1/2" (DN 40) - 2500# ANSI / ASME B16.5
  • 1-1/2" (DN 40) - 300# ANSI / ASME B16.5
  • 1-1/2" (DN 40) - 3000# ANSI / ASME B16.5
  • 1-1/2" (DN 40) - 5000# ANSI / ASME B16.5
  • 1-1/2" (DN 40) - 600# ANSI / ASME B16.5
  • 1-1/2" (DN 40) - 900# ANSI / ASME B16.5

Flange Size - 1” (DN 25)

  • 1" (DN 25) - 10,000# ANSI / ASME B16.5
  • 1" (DN 25) - 150# ANSI / ASME B16.5
  • 1" (DN 25) - 1500# ANSI / ASME B16.5
  • 1" (DN 25) - 2500# ANSI / ASME B16.5
  • 1" (DN 25) - 300# ANSI / ASME B16.5
  • 1" (DN 25) - 3000# ANSI / ASME B16.5
  • 1" (DN 25) - 5000# ANSI / ASME B16.5
  • 1" (DN 25) - 600# ANSI / ASME B16.5
  • 1" (DN 25) - 900# ANSI / ASME B16.5

Flange Size - 1/2” (DN 15)

  • 1/2" (DN 15) - 10,000# ANSI / ASME B16.5
  • 1/2" (DN 15) - 150# ANSI / ASME B16.5
  • 1/2" (DN 15) - 1500# ANSI / ASME B16.5
  • 1/2" (DN 15) - 2500# ANSI / ASME B16.5
  • 1/2" (DN 15) - 300# ANSI / ASME B16.5
  • 1/2" (DN 15) - 3000# ANSI / ASME B16.5
  • 1/2" (DN 15) - 5000# ANSI / ASME B16.5
  • 1/2" (DN 15) - 600# ANSI / ASME B16.5
  • 1/2" (DN 15) - 900# ANSI / ASME B16.5

Flange Size - 1/4” (DN 8)

  • 1/4" (DN 8) - 10,000# ANSI / ASME B16.5
  • 1/4" (DN 8) - 150# ANSI / ASME B16.5
  • 1/4" (DN 8) - 1500# ANSI / ASME B16.5
  • 1/4" (DN 8) - 2500# ANSI / ASME B16.5
  • 1/4" (DN 8) - 300# ANSI / ASME B16.5
  • 1/4" (DN 8) - 3000# ANSI / ASME B16.5
  • 1/4" (DN 8) - 5000# ANSI / ASME B16.5
  • 1/4" (DN 8) - 600# ANSI / ASME B16.5
  • 1/4" (DN 8) - 900# ANSI / ASME B16.5

Flange Size - 2-1/16” (DN 52)

  • 2-1/16" (DN 52) - 10,000# ANSI / ASME B16.5
  • 2-1/16" (DN 52) - 150# ANSI / ASME B16.5
  • 2-1/16" (DN 52) - 1500# ANSI / ASME B16.5
  • 2-1/16" (DN 52) - 2500# ANSI / ASME B16.5
  • 2-1/16" (DN 52) - 300# ANSI / ASME B16.5
  • 2-1/16" (DN 52) - 3000# ANSI / ASME B16.5
  • 2-1/16" (DN 52) - 5000# ANSI / ASME B16.5
  • 2-1/16" (DN 52) - 600# ANSI / ASME B16.5
  • 2-1/16" (DN 52) - 900# ANSI / ASME B16.5

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 10,000# ANSI / ASME B16.5
  • 2" (DN 50) - 150# ANSI / ASME B16.5
  • 2" (DN 50) - 1500# ANSI / ASME B16.5
  • 2" (DN 50) - 2500# ANSI / ASME B16.5
  • 2" (DN 50) - 300# ANSI / ASME B16.5
  • 2" (DN 50) - 3000# ANSI / ASME B16.5
  • 2" (DN 50) - 5000# ANSI / ASME B16.5
  • 2" (DN 50) - 600# ANSI / ASME B16.5
  • 2" (DN 50) - 900# ANSI / ASME B16.5

Flange Size - 3” (DN 80)

  • 3" (DN 80) - 10,000# ANSI / ASME B16.5
  • 3" (DN 80) - 150# ANSI / ASME B16.5
  • 3" (DN 80) - 1500# ANSI / ASME B16.5
  • 3" (DN 80) - 2500# ANSI / ASME B16.5
  • 3" (DN 80) - 300# ANSI / ASME B16.5
  • 3" (DN 80) - 3000# ANSI / ASME B16.5
  • 3" (DN 80) - 5000# ANSI / ASME B16.5
  • 3" (DN 80) - 600# ANSI / ASME B16.5
  • 3" (DN 80) - 900# ANSI / ASME B16.5

Flange Size - 3/4” (DN 20)

  • 3/4" (DN 20) - 10,000# ANSI / ASME B16.5
  • 3/4" (DN 20) - 150# ANSI / ASME B16.5
  • 3/4" (DN 20) - 1500# ANSI / ASME B16.5
  • 3/4" (DN 20) - 2500# ANSI / ASME B16.5
  • 3/4" (DN 20) - 300# ANSI / ASME B16.5
  • 3/4" (DN 20) - 3000# ANSI / ASME B16.5
  • 3/4" (DN 20) - 5000# ANSI / ASME B16.5
  • 3/4" (DN 20) - 600# ANSI / ASME B16.5
  • 3/4" (DN 20) - 900# ANSI / ASME B16.5

Flange Size - 3/8” (DN 10)

  • 3/8" (DN 10) - 10,000# ANSI / ASME B16.5
  • 3/8" (DN 10) - 150# ANSI / ASME B16.5
  • 3/8" (DN 10) - 1500# ANSI / ASME B16.5
  • 3/8" (DN 10) - 2500# ANSI / ASME B16.5
  • 3/8" (DN 10) - 300# ANSI / ASME B16.5
  • 3/8" (DN 10) - 3000# ANSI / ASME B16.5
  • 3/8" (DN 10) - 5000# ANSI / ASME B16.5
  • 3/8" (DN 10) - 600# ANSI / ASME B16.5
  • 3/8" (DN 10) - 900# ANSI / ASME B16.5

Flange Size - 4” (DN 100)

  • 4" (DN 100) - 10,000# ANSI / ASME B16.5
  • 4" (DN 100) - 150# ANSI / ASME B16.5
  • 4" (DN 100) - 1500# ANSI / ASME B16.5
  • 4" (DN 100) - 2500# ANSI / ASME B16.5
  • 4" (DN 100) - 300# ANSI / ASME B16.5
  • 4" (DN 100) - 3000# ANSI / ASME B16.5
  • 4" (DN 100) - 5000# ANSI / ASME B16.5
  • 4" (DN 100) - 600# ANSI / ASME B16.5
  • 4" (DN 100) - 900# ANSI / ASME B16.5

NACE & NIST

  • NACE

NPT Connection

  • 1/2" NPT Female

Stem Packing Material

  • Graphoil
  • RPTEF/PTFE

Operating Presure

  • Max 10,000 psi (690 barg)

Temperature Rating

  • -54° to 538° C

Bore Size

  • 6 mm Standard
  • 8 mm

  • Oil and Gas
  • Petrochemical
