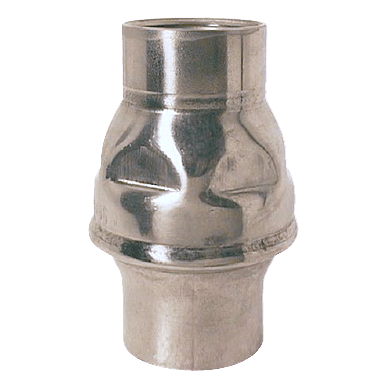

KUR-MR Non-Return Valve
Brand: KOBOLD Instruments, IncKOBOLD KUR model series non-return valves are used wherever it must be ensured that transferred liquids do not flow back against the prescribed direction of travel, such as due to pump shut-off, slope of the piping, self-arising vacuum conditions, etc.
Features- Two-part screwed body
- Can be mounted in any position, preferably horizontal or vertical (note specified direction of flow)
- G 1/4" Female to G 3" connections
- psi: 232.1 (bar: 16, kPa: 1,600 kPa) nominal pressure
- -20° to 110° C (-4° to 230° F) temperature range
- Stainless steel 1.4301 body
- FKM gasket
- Stainless steel 1.4310 spring
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 10
- Process Connection - G 1" Female
100+ In Stock
$2,482.00 CAD
Does not ship to OH, United States
- Process Connection - G1-1/2" Female
100+ In Stock
$1,758.00 CAD
Does not ship to OH, United States
- Process Connection - G 1/4" Female
50+ In Stock
$1,874.00 CAD
Does not ship to OH, United States
- Process Connection - G 2" Female
50+ In Stock
$849.00 CAD
Does not ship to OH, United States
- Process Connection - G1-1/4" Female
50+ In Stock
$870.00 CAD
Does not ship to OH, United States
- Process Connection - G1/2" Female
50+ In Stock
$678.00 CAD
Does not ship to OH, United States
- Process Connection - G 3/8" Female
50+ In Stock
$1,673.00 CAD
Does not ship to OH, United States
- Process Connection - G 2-1/2" Female
50+ In Stock
$2,057.00 CAD
Does not ship to OH, United States
- Process Connection - G3" Female
50+ In Stock
$1,179.00 CAD
Does not ship to OH, United States
- Process Connection - G 3/4" Female
22 In Stock
$1,939.00 CAD
Does not ship to OH, United States
Specifications
BSP Connection
- G 1” Female
- G 1/2” Female
- G 1/4” to G 3” Female
- G 1-1/2” Female
- G 1-1/4” Female
- G 2” Female
- G 2-1/2” Female
- G 3” Female
- G 3/4” Female
- G 3/8” Female
Enclosure, Body Material
- 304 Stainless Steel
Gasket Material
- FKM
Mounting Position
- Any Orientation
Nominal Pressure
- psi: 232.1 (bar: 16, kPa: 1,600)
Spring Material
- 301 Stainless Steel
Temperature Range
- -20° to 110° C (-4° to 230° F)
