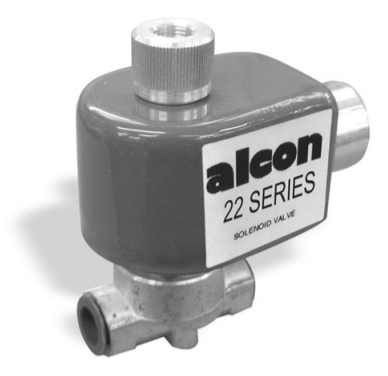

22 Series 2-Way General Purpose Solenoid Valve
Brand: Alcon Solenoid Valves - by RotorkSpecifications
- Zero Pressure Rated
- Ideal for In-Line System Service and Repair
- Choice of Valve Body Material and Seals
Specifications
Seal Material
- EPDM at -50° to 120° C (-58° to 248° F)
- Nitrile (Buna-N) at -10° to 80° C (14° to 176° F)
- PTFE at -196° to 180° C (-321° to 356° F)
- Viton at -20° to 150° C (-4° to 302° F)
Enclosure, Body Material
- Brass
- Stainless Steel
Environmental Protection
- Din Connector: NEMA 4
- IP11
- IP66
- Metal Enclosure: NEMA 2
Ambient Temperature
- -10° to 50° C (14° to 122° F)
Pipe Size
- 1/8", 1/4", 3/8"
Orifice Size
- 1.5 mm
- 3.0 mm
- 6.0 mm
Electrical Connection
- 1/2” NPT Conduit Hub with 18” Leads
