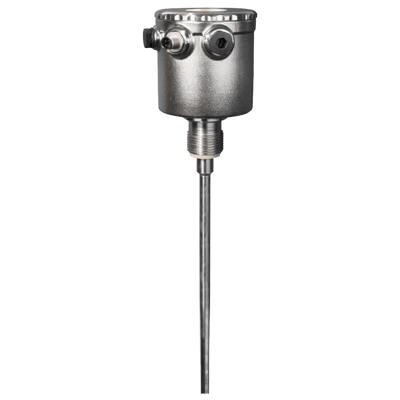

LNP Continuous Level Probe
Brand: KOBOLD Instruments, IncThe KOBOLD level probes LNP serve for continuous level measurement of liquids with negligible conductivity. Levels in vessels containing viscous, pasty or very sticky media can be measured accurately with this new potentiometric method of measurement. It is most suitable for use in small vessels and for measuring fill heights greater than 200 mm.
The probe consists of a head mounted transmitter: this means that 4-20 mA Analog signal that is electrically isolated from the supply voltage is available.
The probe can be mounted from the top or bottom. The output signal is automatically output positionally accurate. Single stem probes can be used in metallic vessels where the tank wall is parallel to the stem.
The devices with the KOBOLD weld-in sleeve LZE form a hygienic measuring point which is cavity free and is ideally suited for CIP/SIP cleaning.
Features- Suited for viscous, pasty very sticky media
- Stem length: 200 to 2,000 mm
- Accuracy: ±1% of stem length
- Process connection: G 1", 1" NPT hygienic mounting (EHEDG) with installation system LZE
- Food compatible materials stainless steel and PEEK
- Analog output: 4 -20 mA
- 8-digit LED-chain trend display
- 7-point linearity function for volume calibration
Displaying prices & availability for Ohio, United States in CAD. Change location.
Featured
- Featured
- Quantity In Stock
- Price
- SKU / Model Number
Models matching criteria: 40
- Process Connection - G 1"
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 2,000 mm (Ø 10 mm)
100+ In Stock
$2,540.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 2,000 mm (Ø 10 mm)
100+ In Stock
$1,439.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 700 mm (Ø 10 mm)
100+ In Stock
$2,375.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 300 mm (Ø 8 mm)
100+ In Stock
$2,466.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 300 mm (Ø 8 mm)
100+ In Stock
$1,905.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 400 mm (Ø 8 mm)
100+ In Stock
$2,319.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 300 mm (Ø 8 mm)
100+ In Stock
$1,071.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 700 mm (Ø 10 mm)
100+ In Stock
$1,496.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 400 mm (Ø 8 mm)
100+ In Stock
$1,692.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 200 mm (Ø 8 mm)
100+ In Stock
$1,605.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 200 mm (Ø 8 mm)
100+ In Stock
$2,435.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 400 mm (Ø 8 mm)
50+ In Stock
$2,337.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 600 mm (Ø 10 mm)
50+ In Stock
$57.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 800 mm (Ø 10 mm)
50+ In Stock
$959.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 800 mm (Ø 10 mm)
50+ In Stock
$2,191.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 400 mm (Ø 8 mm)
50+ In Stock
$826.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 1,500 mm (Ø 10 mm)
50+ In Stock
$1,880.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 1,500 mm (Ø 10 mm)
50+ In Stock
$2,248.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 600 mm (Ø 10 mm)
50+ In Stock
$2,008.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 600 mm (Ø 10 mm)
50+ In Stock
$1,152.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 600 mm (Ø 10 mm)
50+ In Stock
$1,112.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 500 mm (Ø 8 mm)
50+ In Stock
$908.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 200 mm (Ø 8 mm)
50+ In Stock
$532.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 200 mm (Ø 8 mm)
50+ In Stock
$1,803.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 800 mm (Ø 10 mm)
50+ In Stock
$2,132.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 500 mm (Ø 8 mm)
50+ In Stock
$2,085.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 2,000 mm (Ø 10 mm)
50+ In Stock
$125.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 1,000 mm (Ø 10 mm)
50+ In Stock
$432.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 800 mm (Ø 10 mm)
50+ In Stock
$1,460.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 500 mm (Ø 8 mm)
50+ In Stock
$787.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 2,000 mm (Ø 10 mm)
50+ In Stock
$1,216.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 1,000 mm (Ø 10 mm)
50+ In Stock
$2,334.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 1,500 mm (Ø 10 mm)
50+ In Stock
$312.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 300 mm (Ø 8 mm)
25+ In Stock
$1,254.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 1,500 mm (Ø 10 mm)
25+ In Stock
$347.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 700 mm (Ø 10 mm)
25+ In Stock
$2,385.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 700 mm (Ø 10 mm)
25+ In Stock
$2,558.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 1,000 mm (Ø 10 mm)
25+ In Stock
$655.00 CAD
Does not ship to OH, United States
- Process Connection - 1" NPT
- Electrical Connection - M12 x 1 Plug Connector
- Stem Length - 1,000 mm (Ø 10 mm)
19 In Stock
$938.00 CAD
Does not ship to OH, United States
- Process Connection - G 1"
- Electrical Connection - Cable Gland M16 x 1.5
- Stem Length - 500 mm (Ø 8 mm)
6 In Stock
$2,486.00 CAD
Does not ship to OH, United States
Specifications
Accuracy
- ± 1 % of Stem Length
- ≤ 1 % of Stem Length
Ambient Temperature Range
- 0° to 70° C (32° to 158° F)
Applications
- Media with Low Conductivity
- Pasty Media
- Very Sticky Media
- Viscous Media
Approvals & Certifications
- EHEDG
BSP Connection
- G 1" Male
Display
- 8-Digit LED
Electrical Connectors
- 2 x Cable Gland M16 x1.5
- M12 x 1 Plug
Enclosure, Body Material
- PEEK
Environmental Protection
- IP67
Input Signal
- 2.4 mA - Replacement Signal
Linearization
- ≤ 1 % for Parallel Tank Wall
Materials of Construction
- 316 Stainless Steel - Head, Screwed Gland
- PEEK - Isolating Body
Maximum System Pressure
- psi: 145 (bar: 10, kPa: 1,000)
NPT Connection
- 1" NPT Male
Output
- 4-20 mA
Output Load
- 500 ohms - Max.
Power Requirement
- 120 mA - Max.
- 18-36 Vdc
Process Temperature
- -10° to 150° C (14° to 302° F)
Repeatability
- ≤ 0.1 %
Resolution
- 12.5%
Screw Material
- 316 Stainless Steel
Stem Length
- 7.874" to 78.74" (200 to 2,000 mm)
Stem Material
- 316 Stainless Steel
Zero Offset
- 0 to 25 % of Stem Length
