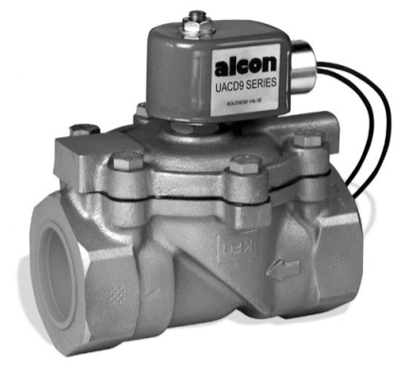

UACD Series 2-Way General Purpose Solenoid Valve
Brand: Alcon Solenoid Valves - by RotorkSpecifications
- Robust Valve Design
- Diaphragm Operation
- Fully Ported Orifices for high Cv
- Choice of Valve Body Material and Seals
Specifications
Approvals & Certifications
- CSA
- UL
Body Material
- 1-1/4” to 2”: Bronze
- 3/8” to 1”: Brass
- Stainless Steel
Environmental Protection
- Din Connector: NEMA 4
- Metal Enclosure: NEMA 2
Seal Material
- EPDM at 0° to 120° C (32° to 248° F)
- Nitrile (Buna-N) at -10° to 80° C (14° to 176° F)
- Viton at -10° to 150° C (14° to 302° F)
Ambient Temperature
- +14° to +122° F (-10° to 50° C)
Elelctrical Connection
- 1/2" NPT Conduit Hub with 18" Leads
- 9 mm Din Connector (DIN 43650)
Pipe Size
- 3/8", 1/2", 3/4" 1", 1-1/4", 1-1/2", 2"
