Images are representations only.

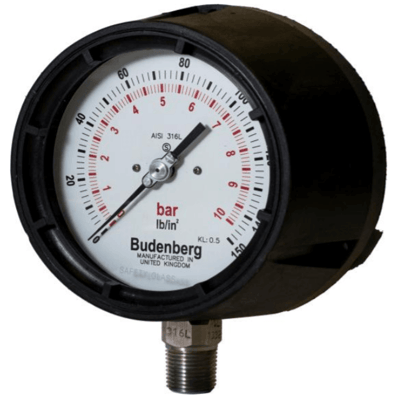

115mm Dial - Full Safety Pattern Turret Gauge
Price
$2,135.00 CAD
Stock
50+ In Stock
Turret style gauges are used widely in harsh environments - primarily those found in chemical and off shore industries.
As part of their design, turret gauges are suitable for both direct and surface mounting. Moulded spacer legs at three fixing points allow the back to blow out (in the event of tube failure) even if the gauge is Surface Mounted.
The Phenolic case provides resistance to corrosion that is typical in the chemical process and petro-chemical industries.
Specifications
Brand
Approvals & Certifications
- PED
Environmental Protection
- IP54
- IP65
- NEMA 3
- NEMA 4X
Fill Material
- Glycerin
- Halocarbon
- Silicone
NPT Connection
- 1/2” NPT Male
- 1/4” NPT Male
- 3/8” NPT Male
Pressure Range
- bar: 0 to 2,068
- kPa: 0 to 206,800
- psi: 0 to 30,000
Size
- 4.52” (115 mm)
Mounting
- Direct Bottom or Surface
Case/Bezel Material
- Black Fibreglass Rienforced Thermoplastic
Materials of Construction
- Pressure Element: 316 or 316LSt St Bourdon Tube or Monel
- Window: Laminated Safety Glass or Acrylic
- Dial: White Anodised Aluminium
- Movement: 316 St St
Accuracy Class
- CL:1 0.5% of FSD (Grade 2A, ASME B40, 100)
Operating Temperature
- -20° to +90° C
Storage Temperature
- -40° to 100° C
- Hydraulic Systems
- Compressors
- Pumps and Food Industries
- Plant Construction Equipment
- Water Treatment
- General Industry
