Kobold Magnetic Level Switch, M20
Images are representations only.

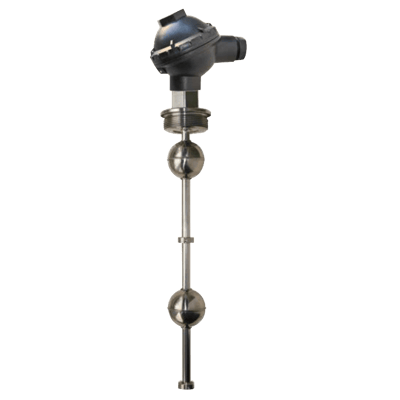

M20 Magnetic Level Switch

Brand: KOBOLD Instruments, Inc
Request Information
Favorite

Magnetic level switches are used for the monitoring and control of liquid levels in vessels. Magnetic level switches are manufactured to customer specification.
Features
  • Simple installation
  • Long electrical service life due to sealed contacts
  • High-degree of operational reliability with air gap between guide tube and floats
  • Installation in top or bottom of vessel
  • Several levels can be monitored with one float
  • Open/close function or changeover contact available

View Details

Specifications

Brand

Approvals & Certifications

  • ATEX
  • Ex

Bore Size

  • 0.81” (20.8 mm)

BSP Connection

  • G 1/2”

Cable Length

  • 3.3 feet (1 metre)

Cable Material

  • PVC

Electrical Contacts

  • Changeover Contact
  • N/C Contact
  • N/O Contact

Electrical Rating

  • 230 Vac/dc / 1 A / 60 VA

Enclosure, Body Material

  • 316 Stainless Steel - Float & Tube

Environmental Protection

  • IP65

Hysteresis

  • 0.197” (5 mm)

Length

  • Maximum

Maximum System Pressure

  • psi: 217 (Kpa: 1500, bar: 15) at 20° C

Mounting Position

  • Vertical ± 30°

Nominal Pressure

  • psi: 217 (kPa: 1,500, bar: 15)

Sensor, Probe Style

  • Float - Ball Hollow

Switch Type

  • Changeover Contact
  • SPDT

Temperature Range

  • Maximum
