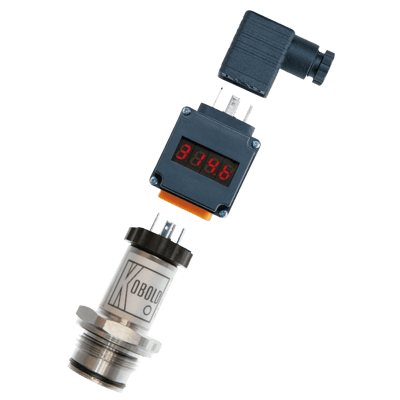

SEN-3251 / SEN-3252 Pressure Transducer
Brand: KOBOLD Instruments, IncThe Heavy Duty Industrial pressure transducers are leaders among pressure transducers. The flush type diaphragm allows the use with aggressive, viscous or crystallizing process fluids. This type of sealing permits cleaning of the process connections without residues. Case and wetted parts are stainless steel. Therefore the are extremely resistant against aggressive media and fulfill the most demanding requirements.
Two adjustment potentiometers for zero and span render possible the use in most difficult applications like measurement of the hydrostatic column.
Specifications
Accuracy
- 0.25 - Accuracy Class
- 0.5 - Accuracy Class
Ambient Temperature Range
- -20° to 80° C (-5° to 175° F)
Applications
- Apparatus Engineering Equipment
- Development & Laboratory
- Plant Construction
- Process Engineering
BSP Connection
- G 1” Male
- G 1/2” Male
Compensated Temperature
- 0° to 80° C (32° to 175° F)
Electrical Connectors
- 6.56 feet (2 metres) Cable
- Connector According to DIN 43650
- Junction Box
- M12 x 1 Plug 4-Pin
Enclosure / Body Material
- 304 Stainless Steel, 1.4301
Environmental Protection
- IP65
- IP67
Load Resistance
- > 10 kiloohms for 0-10 V
- > 5 kiloohms for 0-5 V
Output
- 0-10 Vdc
- 4-20 mA, 2-Wire
Power Requirement
- 10-30 Vdc - Auxiliary Power
- 14-30 Vdc for Output 0-10 V - Auxiliary Power
Pressure Range
- bar: -1 to 25
- kPa: -100 to 2,500
- psi: -14.5 to 362.6
Pressure Type
- Gauge Pressure
Process Temperature
- -30° to 100° C (-20° to 212° F)
Repeatability
- ≤ ± 0.05 % of Full Scale
Response Time
- ≤ 1 millisecond (within 10 to 90 % of Full Scale)
Sensor / Probe Type
- Piezoresistive
Span & Zero Adjustments
- Up to ± 10 % - Variability: Zero Point & Span
Stability
- ≤ ± 0.2 % of Full Scale Per Year
Storage Temperature
- -40° to 100° C (-40° to 212° F)
Temperature Effect
- ± 0.2 %/10 K - Temperature Influence on Zero Point & Span
- ± 0.4 %/10 K - Temperature Influence on Zero Point & Span
Wetted Materials
- 316Ti Stainless Steel, 1.4542
- NBR
