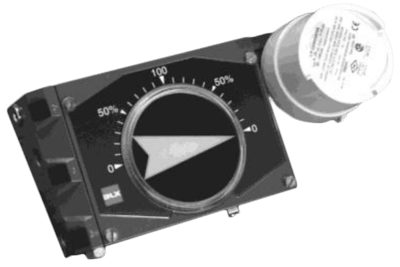

V100EEX Pneumatic Valve Positioner
Brand: BudenbergA line of pneumatic valve positioners incorporating over sixty years of design, manufacturing and marketing expertise, creating one of the most durable, reliable instruments on the market.
This positioner can be ordered with either European or US certification on the I/P converter thus allowing it to be used in hazardous locations. Certificates from CSA, FM and ATEX are available.
Accessories in the way of gauges, feedback modules or a raised indicator can be added in a matter of minutes.
Maximum modularity equals maximum flexibility and with a simple design and quality components, the performance is a maximum as well.
Specifications
Brand
Approvals & Certifications
- ATEX: II 1 G Eex Ia IIC T4-6
- CSA: Class I, Div. 1, Groups B, C, D, Class II, Div. 1, Group EFG
- FM
BSP Connection
- G 1/4”
- G 1/8”
Environmental Protection
- IP66
- NEMA 4X
NPT Connection
- 1/4” NPT
- 1/8” NPT
Input Signal
- 4-20 mA (Ri < 250 ohms)
Supply Pressure
- 0.15 to 0.7 MPa (20 to 100 psi)
Repeatability
- <0.5% FS
Temperature Range
- -40° to +85° C (-40° to +185° F)
Surface Finish
- Powder Polyester
