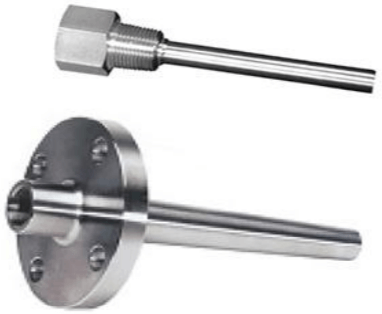

250 Solid Drilled Thermowell

Brand: Budenberg

Solid drilled thermowells are designed to withstand greater pressures and fluid velocities than their fabricated counterparts.

Some materials are also difficult to source in specifications to easily form fabricated constructions and so are generally only offered in solid drilled versions.

All thermowells are manufactured to ISO 9000-2000 and are designed to meet British, European American and other relevant standards.

A wide range of certifications are available on request including; Dye penetration, Radiography, Pressure test, material certification and wake frequency calculations.

Models matching criteria: 4
Flanged Parallel Thermowell
50+ In Stock
$2,410.00 CAD
Does not ship to OH, United States
Screwed Parallel Thermowell
25+ In Stock
$1,224.00 CAD
Does not ship to OH, United States
Screwed Taper Thermowell
16 In Stock
$431.00 CAD
Does not ship to OH, United States
Flanged Taper Thermowell
9 In Stock
$432.00 CAD
Does not ship to OH, United States

Specifications

BSP Connection

  • 1” BSPT Male
  • 1/2” BSP Male
  • 1/2” BSPP Male
  • 1/2” BSPT Male
  • 1/4” BSPP Male
  • 1/4” BSPT Male
  • 3/4” BSPT Male
  • 3/8” BSPP Male
  • 5/8” BSPP Male

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150# ANSI
  • 1-1/2” (DN 40) - 1500# ANSI
  • 1-1/2” (DN 40) - 2500# ANSI
  • 1-1/2” (DN 40) - 300# ANSI
  • 1-1/2” (DN 40) - 600# ANSI
  • 1-1/2” (DN 40) - 900# ANSI
  • 1-1/2” (DN 40) - PN 10
  • 1-1/2” (DN 40) - PN 16
  • 1-1/2” (DN 40) - PN 6
  • 1-1/2” (DN 40) - Table D (BS10)
  • 1-1/2” (DN 40) - Table E (BS10)
  • 1-1/2” (DN 40) - Table F (BS10)
  • 1-1/2” (DN 40) - Table H (BS10)

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150# ANSI
  • 1” (DN 25) - 1500# ANSI
  • 1” (DN 25) - 2500# ANSI
  • 1” (DN 25) - 300# ANSI
  • 1” (DN 25) - 600# ANSI
  • 1” (DN 25) - 900# ANSI
  • 1” (DN 25) - PN 10
  • 1” (DN 25) - PN 16
  • 1” (DN 25) - PN 6
  • 1” (DN 25) - Table D (BS10)
  • 1” (DN 25) - Table E (BS10)
  • 1” (DN 25) - Table F (BS10)
  • 1” (DN 25) - Table H (BS10)

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ANSI
  • 2” (DN 50) - 1500# ANSI
  • 2” (DN 50) - 2500# ANSI
  • 2” (DN 50) - 300# ANSI
  • 2” (DN 50) - 600# ANSI
  • 2” (DN 50) - 900# ANSI
  • 2” (DN 50) - PN 10
  • 2” (DN 50) - PN 16
  • 2” (DN 50) - PN 6
  • 2” (DN 50) - Table D (BS10)
  • 2” (DN 50) - Table E (BS10)
  • 2” (DN 50) - Table F (BS10)
  • 2” (DN 50) - Table H (BS10)

Insertion 'U' Length

  • 1.96 to 23.62” (50 to 600 mm)

NPT Connection

  • 1” NPT Male
  • 1/2” NPT Male
  • 3/4” NPT Male

Sensor Diameter

  • 6 to 15.9 mm

Material of Construction

  • Carbon Steel
  • 316 Stainless Steel
  • Brass
  • Copper

  • Power Generation and Transmission
  • Water and Waste Water
