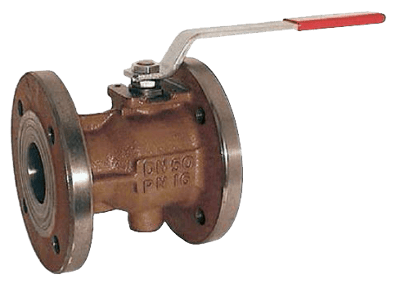

KUG-VO Manual Flanged Ball Valve
Brand: KOBOLD Instruments, IncDesign
Multiple-piece construction with full-bore (DN 25 to DN 125 (one-piece version), DN 150 to DN 200 (two-piece version), with mounting pad for actuator as per ISO 5211.
Technical Details
- Connections: Flanged Nach DIN 2533 DN 25 to DN 200
- Overall Length: Nach DIN 3202-F4/5
- Temperature Range: -20° to 120° C (-4° to 248° F)
- Nominal Pressure: PN 16 (232.1 psi, 1,600 kPa, 16 bar) dimensioned, with Threaded Holes, to 80° C (176° F)
- Operation: 90° Rotation of the Handle (Handle is Reversible through 180°)
Materials
- Body: Cast Iron GG-25
- Ball: Brass, Hard-Chrome Plated
- Ball Gasket: PTFE
- Spindle Gasket: PTFE/NBR
- Handle: Steel, Zinc Coated, Plastic Sheathed, Red
Displaying prices & availability for Ohio, United States in CAD. Change location.
Featured
- Featured
- Quantity In Stock
- Price
- SKU / Model Number
Models matching criteria: 10
50+ In Stock
$1,533.00 CAD
Does not ship to OH, United States
50+ In Stock
$1,186.00 CAD
Does not ship to OH, United States
50+ In Stock
$2,485.00 CAD
Does not ship to OH, United States
50+ In Stock
$285.00 CAD
Does not ship to OH, United States
50+ In Stock
$1,416.00 CAD
Does not ship to OH, United States
50+ In Stock
$1,562.00 CAD
Does not ship to OH, United States
50+ In Stock
$2,500.00 CAD
Does not ship to OH, United States
25+ In Stock
$380.00 CAD
Does not ship to OH, United States
25+ In Stock
$1,790.00 CAD
Does not ship to OH, United States
3 In Stock
$1,033.00 CAD
Does not ship to OH, United States
Specifications
Ball Gasket Material
- PTFE
Ball Material
- Brass, Hard-Chrome-Plated
Direct Mount
- Yes
Enclosure, Body Material
- Cast Iron GG-25
Flange Size - 1-1/2” (DN 40)
- 1-1/2" (DN 40) - PN 16
Flange Size - 1-1/4” (DN 32)
- 1-1/4" (DN 32) - PN 16
Flange Size - 1” (DN 25)
- 1" (DN 25) - PN 16
Flange Size - 2-1/2” (DN 65)
- 2-1/2" (DN 65) - PN 16
Flange Size - 2” (DN 50)
- 2" (DN 50) - PN 16
Flange Size - 3” (DN 80)
- 3" (DN 80) - PN 16
Flange Size - 4” (DN 100)
- 4" (DN 100) - PN 16
Flange Size - 5” (DN 125)
- 5" (DN 125) - PN 16
Flange Size - 6” (DN 150)
- 6" (DN 150) - PN 16
Flange Size - 8” (DN 200)
- 8" (DN 200) - PN 16
Handle Assembly Material
- Steel, Zinc Coated, Plastic Sheathed, Red
Maximum System Pressure
- PN 16 Dimensioned, with Threaded Holes, to 80° C (176° F)
Operation
- 90° Rotation of the Handle (Handle is Reversible through 180°)
Port
- Full
Spindle Gasket Material
- NBR
- PTFE
Temperature Range
- -20° to 120° C (-4° to 248° F)
Valve Type
- Manual
