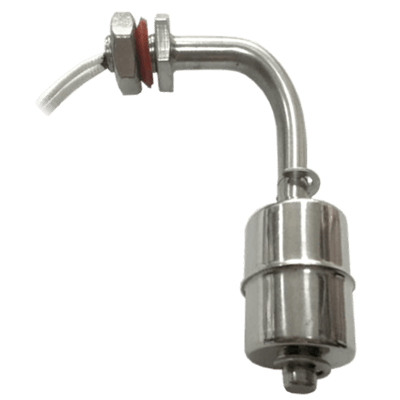

MS05 Magnetic Level Switch

Brand: KOBOLD Instruments, Inc
Request Information
Favorite

Magnetic level switches are used for the monitoring and control of liquid levels in vessels. Magnetic level switches are manufactured to customer specification.

An overview of types available with minimum lengths of measuring tube is set out on the data sheet. Please refer to this overview when placing your order.
Features
  • Simple installation
  • Long electrical service life due to sealed contacts
  • High-degree of operational reliability with air gap between measuring tube and floats
  • Several levels can be monitored with one float
  • Open/close function or changeover contact available

View Details

Specifications

Brand

Approvals & Certifications

  • ATEX Ex ia
  • Ex

Bore Size

  • 0.55” (14 mm)

BSP Connection

  • G 1-1/2”
  • G 2”
  • G 3/8”

Cable Length

  • 3.3 feet (1 metre)

Cable Material

  • PVC - Connection Cable & Screwed Fitting
  • Silicone

Electrical Connectors

  • M16 x 1.5

Electrical Contacts

  • Changeover Contact
  • Normally Closed
  • Normally Open

Electrical Rating

  • 230 Vac/dc / 1 A / 60 VA - N/O, N/C & Changeover Contact

Enclosure, Body Material

  • Aluminum
  • Polyamide

Environmental Protection

  • IP65

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - PN 16

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150#
  • 2-1/2” (DN 65) - PN 16

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - PN 16

Flange Size - 3-1/2” (DN 90)

  • 3-1/2” (DN 90) - 150#

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#
  • 3” (DN 80) - PN 16

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#
  • 4” (DN 100) - PN 16

Flange Size - 5” (DN 125)

  • 5” (DN 125) - PN 16

Hysteresis

  • 0.197” (5 mm)

Length

  • Maximum

Materials of Construction

  • 316 Stainless Steel - Guide Tube & Sliding Screwed Fitting
  • Brass - Duide Tube & Sliding Screwed Fitting
  • Polypropylene (PP) - Float

Maximum System Pressure

  • psi: 43.5 (kPa: 300, bar: 3) at 20° C (68° F)

Mounting Position

  • Lateral ± 30°

Nominal Pressure

  • psi: 43.51 (kPa: 300, bar: 3) at 20° C (68° F)

NPT Connection

  • 1-1/2” NPT Male
  • 2” NPT Male

Sensor, Probe Style

  • Float - Cylinder Hollow

Switch Type

  • Changeover Contact
  • Normally Open & Normally Closed

Temperature Range

  • Maximum
