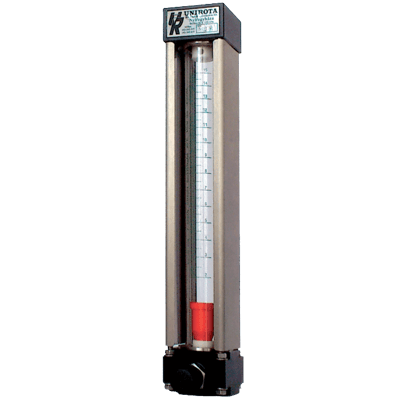

UVR/UTR Variable Area Flowmeter
Brand: KOBOLD Instruments, Inc
The Flow Meters and Switches Model UVR and UTR for liquids and air operate on the suspended float principle: that is, the installation position is vertical and the direction of flow is from bottom to top.
The instruments have been designed as simple and thus economical measuring systems. The float for UVR and UTR is a bomb form float, whereby the indication point is the top of the float. The appliance is available with or without needle valve as well.
Specifications
Accuracy
- Class 4
Ambient Temperature Range
- 0° to 65° C (32° to 149° F)
Applications
- Cooling Water System
- Gas Monitoring for Burners
- Inert Gas Controlling
BSP Connection
- G 1/2”
- G 1/4”
- G 3/8”
Cable Length
- 6.56 feet (2 metres)
Connection Material
- 304 Stainless Steel
- 316 Stainless Steel
- POM - C
Connectors
- Hose Ports
- Pipe for Plastic Pipes
- Push-On
Electrical Connectors
- 2 metres Cable
Enclosure / Body Material
- 316 Stainless Steel
- POM - C
Environmental Protection
- IP65
Flow Rate
- 0.1 to 5 Nm³/hour to Air
- 10 to 2,000 L/hr to Water
Gasket Material
- EPDM
- FPM
- NBR
Materials of Construction
- 316L Stainless Steel - Fitting, Float, Valve, Float Stop
- Aluminum - Float
- Borosilicate Glass - Measuring Tube
- Polypropylene - Float
- POM-C - Fitting, Valve
- PTFE - Float Stop
- PVC - Float
Maximum System Pressure
- psi: 145 (kPa: 1,000, bar: 10)
Media
- Gas
- Liquids & Gases
Mounting Position
- Vertical, Flow from Bottom
NPT Connection
- 1/2” NPT
- 3/8” NPT
Pressure Type
- Absolute
Switch Type
- Proximity
Temperature Range
- 0° to 100° C (32° to 212° F)
- Maximum
