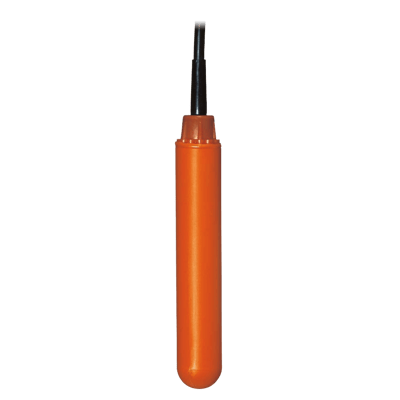

NSP Float Level Switch
Brand: KOBOLD Instruments, Inc
The float comprises a hollow cylinder or a ball with integrated microswitch.
The switch is supplied as a changeover contact; it can be connected as a N/O contact or N/C contact as an option.
The contact switches when the liquid passes above or below the horizontal float position.
The switch point is set either by the side installation at the desired height, clamping at the desired level or when installed from the top weights attached to the cable.
Specifications
Applications
- Liquid Service
- Oil
- Soiled Water
- Weak Acids or Alkalis
Cable Length
- Standard 13.12 feet (4 metres) TPK Cable
Cable Material
- FEP
- Silicone
- Thermoplastic Rubber
Electrical Contacts
- Changeover Contact
- Normally Closed
- Normally Open
Electrical Rating
- Maximum
Enclosure / Body Material
- Polypropylene
Environmental Protection
- IP68
Hysteresis
- 0.98” to 1.38” (25 to 35 mm)
Maximum System Pressure
- psi: 29 (kPa: 200, bar: 2)
Mounting
- Top Mounting
Output Function
- Microswitch - Contact
Switch Type
- Changeover Switch
- Normally Open & Normally Closed
Temperature Range
- Maximum
