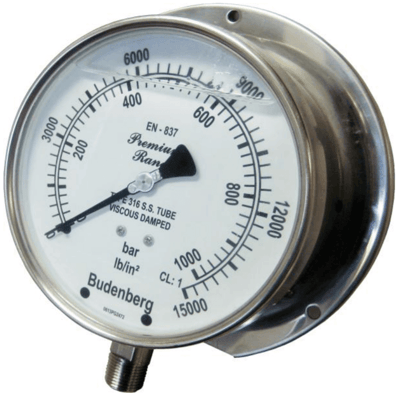

700 Series Power Pack Gauge
Brand: BudenbergThe 700 series of pressure gauges has been designed for specialised applications where high pressures and extremes of pulsation and vibration are the norm.
The 700 series is supplied as either a surface mount, flush panel mount of direct mounting version. The unit is glycerine fillable and can also be supplied with a viscous damped movement and an internal snubber.
Connection vary from NPT or parallel threads to Autoclave HF2 and HF4 depending on the pressure range required.
Original Engineering Manufacturers will often specify this type of gauge for control panels or portable power packs used in the offshore industry or similar demanding environments.
Specifications
Brand
Approvals & Certifications
- PED
BSP Connection
- 1/2" BSP Male
Cone & Thread Connection
- 1/4" Autoclave Typical HP Female
- 1/8" Autoclave Typical HP Female
Environmental Protection
- IP65
Fill Material
- Glycerin
NPT Connection
- 1/2" NPT Male
Pressure Range
- bar: 0 to 3,447
- kPa: 0 to 344,700
- psi: 0 to 50,000
Size
- 4" (100 mm)
- 6" (150 mm)
Accuracy Class
- CL:1 1.0 % of FSD as defined in EN 837-1
Case/Bezel Material
- 316 Stainless Steel
Material of Construction
- Pressure Element: 316 Stainless Steel
- Dial: White Anodised Aluminium
- Pointer: Black Aluminium
- Movement: Stainless Steel
- Window: Toughened Safety Glass
Operating Temperature
- -40° to +60° C
Storage Temperature
- -40° to 100° C
- Offshore Industry or Similar Demanding Environments
