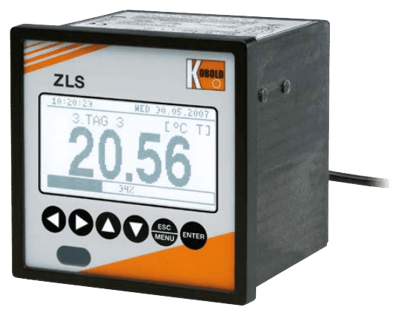

ZLS Electronic Multi-Channel Datalogger
Brand: KOBOLD Instruments, IncThe KOBOLD-Logger model ZLS is designed to record and display current values as well as to present technological parameters in the form of graphs.
The device is equipped with 8 temperature (Pt100, Pt500, Pt1000) or current (in the 0/4-20 mA standard) inputs and one impulsive (digital) input for controlling the recording process.
The device has the memory capacity of 2 MB which gives max. 500 000 data recordings altogether. The internal analogue-digital converter has a 12 bit resolution, which provides high recording resolution results.
Additionally, individual alphanumeric description (text) of each of the recorded channels is possible.
The menu assisted with full text description makes the unit configuration process quite easy. However, due to a significant number of configured parameters, it is advised to use the attached configuration software for PCs.
Specifications
Communication
- Modbus RTU - Transmission Protocol
Consumption
- 12 VA - Max.
- 7 VA - Typical
Dimensions
- 90.5 x 90.5 mm - Panel Cut-out Dimensions
- 96 x 96 x 100 mm (W x H x D) - Case Dimensions
Display
- Graphic LCD - 128 x 64-Points with Backlight
Electrical Connectors
- Screw Terminal
Environmental Protection
- IP20
- IP40
- IP42
- IP65
Humidity
- Up to 90 % without Condensation
Input
- 0-20 mA
- 24 Vdc
- 4-20 mA
Interface Connection
- RS-485, Galvanically Separated
Loop Resistance
- 100 ohms - Current Input Resistance
Operating Temperature
- 0° to 60° C (32° to 140° F)
Output
- 200 mA - Max.
Sensor / Probe Connection
- 2-Wire
- 3-Wire
Sensor / Probe Type
- Pt100
- Pt1000
- Pt500
Sensor Input
- 24 Vdc ± 5 % / 200 mA
Storage Temperature
- -10° to 70° C (14° to 158° F)
Supply Voltage
- 16-35 Vac
- 19-50 Vdc
- 85-260 Vac/Vdc
