Kobold Flow Indicator, Sight Glass with Flap, DAK-12
Images are representations only.

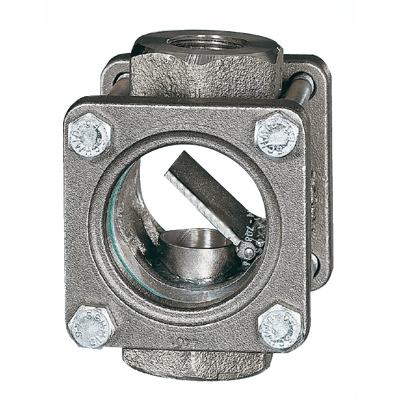

DAK-12 Sight Glass with Flap

Brand: KOBOLD Instruments, Inc
Request Information
Favorite

Material / Mounting Position
  • Flap: Stainless Steel
  • Enclosure Material: Stainless Steel
  • Cover Plates: Stainless Steel
  • Sight Glass: Soda-Lime Glass DIN 8902 Up to 150° C [302° F]) Option: Borosilicate Glass DIN 7080 (Up to 280° C [536° F])
  • Screws: Stainless Steel
  • Seals: Graphite
  • Mounting Position: Horizontal or Vertical with Flow from Bottom to Top
Features
  • Connection: G 1/4" to G 2" Female, 1/4" to 2" Female NPT
  • Enclosure Material: Stainless Steel
  • Max. Pressure: psi: 580.2 (bar: 40, kPa: 4,000)
  • Max. Temperature: 280° C (536° F)

View Details

Specifications

Brand

BSP Connection

  • G 1” Female
  • G 1/2” Female
  • G 1/4” to G 2” Female
  • G 1-1/2” Female
  • G 1-1/4” Female
  • G 2” Female
  • G 3/4” Female
  • G 3/8” Female

Cover Material

  • 316 Stainless Steel

Enclosure, Body Material

  • 316 Stainless Steel

Flap Material

  • 316Ti Stainless Steel

Glass Thickness

  • 10 to 15 mm

Maximum System Pressure

  • psi: 580.2 (bar: 40, kPa: 4,000)

Mounting Position

  • Horizontal with Flow from Bottom to Top
  • Vertical with Flow from Bottom to Top

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1/4” to 2” NPT Female
  • 1-1/2” NPT Female
  • 1-1/4” NPT Female
  • 2” NPT Female
  • 3/4” NPT Female
  • 3/8” NPT Female

Screw Material

  • 316 Stainless Steel

Seat / Seal Material

  • Graphite

Sight Glass Material

  • Borosilicate Glass DIN 7080 (up to 280° C [536° F])
  • Soda-Lime Glass DIN 8902 (up to 150° C [302° F])

Temperature Range

  • 0° to 280° C (32° to 536° F)
