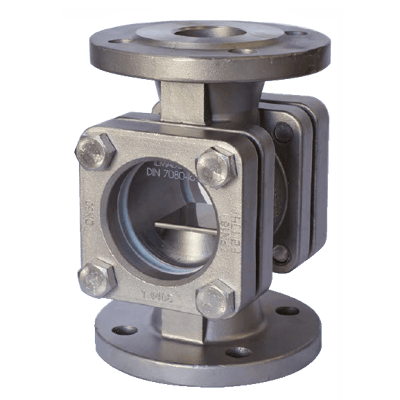

DAK-21 Sight Glass with Flap
Brand: KOBOLD Instruments, IncMaterial / Mounting Position
- Flap: Stainless Steel
- Enclosure Material: Grey Cast Iron
- Cover Plates: Grey Cast Iron
- Sight Glass: Soda-Lime Glass DIN 8902 (Up to 150° C [302° F]) Option: Borosilicate Glass DIN 7080 (Up to 280° C [536° F])
- Screws: Zinc Plated Steel
- Seals: Graphite
- Mounting Position: Horizontal or Vertical with Flow from Bottom to Top
- Connection: Flange DN 15 to DN 200
- Enclosure Material: Grey Cast Iron
- Max. Pressure: psi: 580.2 (bar: 40, kPa: 4,000)
- Max. Temperature: 280° C (536° F)
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 24
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 80
- Sight Glass Material - Borosilicate Glass
100+ In Stock
$820.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 150
- Sight Glass Material - Soda-Lime Glass
100+ In Stock
$1,653.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 200
- Sight Glass Material - Borosilicate Glass
100+ In Stock
$1,638.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 200
- Sight Glass Material - Soda-Lime Glass
50+ In Stock
$1,065.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 65
- Sight Glass Material - Borosilicate Glass
50+ In Stock
$2,057.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 40
- Sight Glass Material - Soda-Lime Glass
50+ In Stock
$2,301.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 20
- Sight Glass Material - Borosilicate Glass
50+ In Stock
$2,155.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 50
- Sight Glass Material - Borosilicate Glass
50+ In Stock
$1,867.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 25
- Sight Glass Material - Borosilicate Glass
50+ In Stock
$2,274.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 100
- Sight Glass Material - Soda-Lime Glass
50+ In Stock
$1,963.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 20
- Sight Glass Material - Soda-Lime Glass
50+ In Stock
$2,257.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 125
- Sight Glass Material - Borosilicate Glass
50+ In Stock
$2,053.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 32
- Sight Glass Material - Soda-Lime Glass
50+ In Stock
$1,782.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 15
- Sight Glass Material - Soda-Lime Glass
25+ In Stock
$1,904.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 150
- Sight Glass Material - Borosilicate Glass
25+ In Stock
$384.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 15
- Sight Glass Material - Borosilicate Glass
25+ In Stock
$1,613.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 32
- Sight Glass Material - Borosilicate Glass
25+ In Stock
$1,067.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 25
- Sight Glass Material - Soda-Lime Glass
25+ In Stock
$798.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 50
- Sight Glass Material - Soda-Lime Glass
25+ In Stock
$1,181.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 80
- Sight Glass Material - Soda-Lime Glass
25+ In Stock
$194.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 40
- Sight Glass Material - Borosilicate Glass
25+ In Stock
$2,022.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 100
- Sight Glass Material - Borosilicate Glass
20 In Stock
$1,444.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 65
- Sight Glass Material - Soda-Lime Glass
19 In Stock
$2,442.00 CAD
Does not ship to OH, United States
- Enclosure Material - Grey Cast Iron 0.6025
- Flange Size - DN 125
- Sight Glass Material - Soda-Lime Glass
3 In Stock
$179.00 CAD
Does not ship to OH, United States
Specifications
Cover Material
- Grey Cast Iron 0.6025
Enclosure, Body Material
- Grey Cast Iron 0.6025
Flange Size - 1-1/2” (DN 40)
- 1-1/2” (DN 40) - PN 16
Flange Size - 1-1/4” (DN 32)
- 1-1/4” (DN 32) - PN 16
Flange Size - 1” (DN 25)
- 1” (DN 25) - PN 16
Flange Size - 1/2” (DN 15)
- 1/2” (DN 15) - PN 16
Flange Size - 2-1/2” (DN 65)
- 2-1/2” (DN 65) - PN 16
Flange Size - 2” (DN 50)
- 2” (DN 50) - PN 16
Flange Size - 3” (DN 80)
- 3” (DN 80) - PN 16
Flange Size - 3/4” (DN 20)
- 3/4” (DN 20) - PN 16
Flange Size - 4” (DN 100)
- 4” (DN 100) - PN 16
Flange Size - 5” (DN 125)
- 5” (DN 125) - PN 16
Flange Size - 6” (DN 150)
- 6” (DN 150) - PN 16
Flange Size - 8” (DN 200)
- 8” (DN 200) - PN 16
Flap Material
- 316Ti Stainless Steel
Glass Thickness
- 10 to 25 mm
Maximum System Pressure
- psi: 580.2 (bar: 40, kPa: 4,000)
Mounting Position
- Horizontal with Flow from Bottom to Top
- Verical with Flow from Bottom to Top
Screw Material
- Zinc-Plated Steel
Seat / Seal Material
- Graphite
Sight Glass Material
- Borosilicate Glass DIN 7080 (up to 280° C [536° F])
- Soda-Lime Glass DIN 8902 (up to 150° C [302° F])
Temperature Range
- 0° to 280° C (32° to 536° F)
