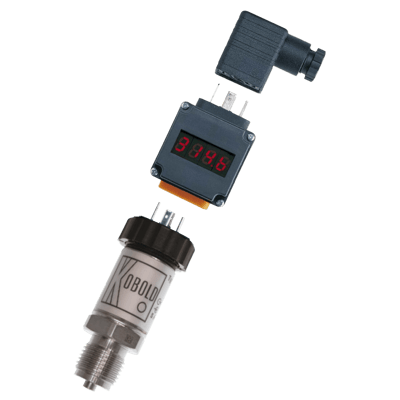

SEN-3245 / SEN-3248 Pressure Transducer
Brand: KOBOLD Instruments, IncThe heavy duty industrial pressure sensors are top-of-the-range among pressure transmitters. A piezo resistive pressure measuring cell serves as measuring element. Housing and wetted parts are made of stainless steel and are thus resistant to chemically aggressive media.
Pressure port and measuring cell are welded together – which means that the measuring system is very resistant to mechanical shock and vibrations. For difficult measurement applications (for example hydrostatic column) zero-point and span can be adjusted with two potentiometers.
Specifications
Accuracy
- 0.25 - Accuracy Class
- 0.5 - Accuracy Class
Ambient Temperature Range
- -20° to 80° C (-4° to 176° F) - Environment Temperature
Applications
- Development & Laboratory
- Hydraulic Applications
- Plant Construction
- Pneumatics
- Process Engineering
BSP Connection
- G 1/2” Male
- G 1/4” Male
Compensated Temperature
- 0° to 80° C (32° to 176° F)
Electrical Connectors
- Connector According to DIN 43650
Enclosure / Body Material
- 304 Stainless Steel, 1.4301
Environmental Protection
- IP65
Load Resistance
- > 10 kiloohms for 0-10 V
NPT Connection
- 1/2” NPT Male
- 1/4” NPT Male
Output
- 0-10 Vdc
- 4-20 mA, 2-Wire
Power Requirement
- 10-30 Vdc - Auxiliary Power
- 14-30 Vdc for 0-10 V Output - Auxiliary Power
Pressure Range
- bar: 0 to 25
- kPa: 0 to 2,500
- psi: 0 to 362.6
Pressure Type
- Absolute
Process Temperature
- -30° to 100° C (-22° to 212° F) - Medium Temperature
Repeatability
- ≤ ± 0.05 % of Full Scale
Response Time
- ≤ 1 millisecond (within 10 to 90 % of Full Scale)
Sensor / Probe Type
- Piezoresistive
Span & Zero Adjustments
- Up to ± 5 % - Variability: Zero Point & Span
Stability
- ≤ ± 0.2 % of Full Scale Per Year
Storage Temperature
- -40° to 100° C (-40° to 212° F)
Temperature Effect
- ± 0.2 %/10 K - Temperature Influence on Zero Point & Span
Temperature Range
- Maximum
Wetted Materials
- 316Ti Stainless Steel, 1.4542
