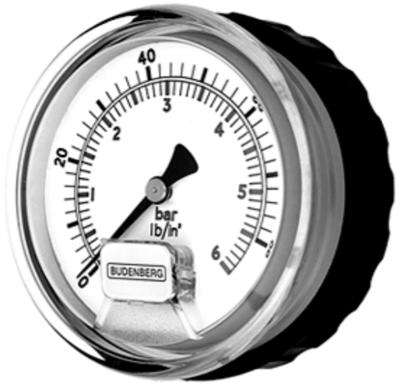

11/15H Industrial Service Gauge

Brand: Budenberg

The model 11/15H is manufactured to meet the demand for small high quality gauges designed for applications using gases, water or any liquid that does not attack brass and bronze.

The one piece polycarbonate case with integral window forms a solid baffle in front of the Bourdon tube and incorporates a full diameter stainless steel blow-out back so that in the event of a tube failure through corrosion, explosion or gross over pressure any vapour or debris is vented from the back of the case.

This gauge is designed for fitting into a panel, and is held in place by a screwed plastic clamping ring which screws around the outside of the case providing very easy fixing. The transparent front flange assumes the colour of the panel.

For oxygen applications these gauges must be manufactured to ensure they are entirely free from oil and grease.

Models matching criteria: 2
Budenberg Industrial Service Gauge
50+ In Stock
$897.00 CAD
Does not ship to OH, United States
Budenberg Industrial Service Gauge
50+ In Stock
$2,526.00 CAD
Does not ship to OH, United States

Specifications

Approvals & Certifications

  • PED

BSP Connection

  • 1/4” BSP Male
  • 1/8” BSP Male

Enclosure, Body Material

  • Polycarbonate

Environmental Protection

  • IP54

NPT Connection

  • 1/8” NPT Male

Pressure Range

  • bar: 0 to 600
  • kPa: 0 to 60,000
  • psi: 0 to 8,702

Size

  • 2.48” (63 mm)
  • 3.15” (80 mm)

Accuracy Class

  • CL:1 1.0% of FSD as Defined in EN837-1

Materials of Construction

  • Pointer: Stainless Steel Coloured Black
  • Movement: Brass
  • Pressure Element: 316 Stainless Steel
