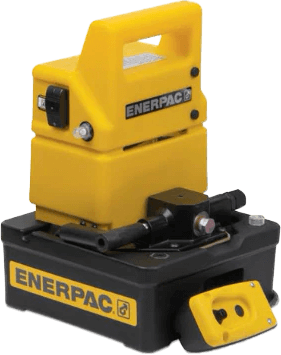

PU Series Hydraulic Electric Economy Pumps

Brand: Enerpac
Request Information
Favorite

download (2).png download (1).png download (4).png www.enerpac.png download.png
Specifications
  • The Economy pump is best suited to power small to medium size cylinders or hydraulic tools. Its lightweight and compact design makes it ideal for applications which require easy transport of the pump.
  • The Universal motor works well on long extension cords or generator driven electrical power supplies.
  • Available with 3- and 4-way valves for single- or double-acting cylinders
  • 10-ft cord controls the motor operation
  • Manual valves provide advance/retract tool control
  • Lightweight and compact design
  • Large easy-carry handle for maximum portability
  • Two-speed operation reduces cycle times for improved productivity
  • 115 VAC 50/60-cycle universal motor will operate on voltages as low as 60 volts
  • 24 VAC remote motor control
  • Starts under full load
  • High strength molded shroud with integral handle
  • Designed for intermittent duty cycle

View Details

Specifications

Brand

Pressure Rating 1st Stage

  • 200 psi (13 bar)

Pressure Rating 2nd Stage

  • 10,000 psi (700 bar)

Cylinder Compatibility

  • Single-Acting
  • Double-Acting

Reservoir Capacity

  • 116 - 231 in³ (1900 - 3800 cm³)

Usable Oil Capacity

  • 0.5 - 1 gallon (1.9 - 3.8 litres)

Maximum Flow at Rated Pressure

  • 20 in³/min (0.32 l/min)

Output Flow Rate 1st Stage

  • 3.31 l/min (200 in³/min)

Output Flow Rate 2nd Stage

  • 0.32 l/min (20 in³/min)

Motor Size

  • 0.5 hp

Motor Voltage

  • 208-240 V
  • 115 V

Duty Cycle

  • Intermittent

Valve Function

  • Advance / Retract
  • Advance / Hold / Retract

Power Source

  • Electric

Power Operation

  • Dump
  • Dump and Hold

Pump Control

  • Pendant

Motor Electrical Specification

  • 115 V, 50/60 Hz
  • 230 V, 50/60 Hz

Current Draw

  • 9.5 A

Sound Level

  • 85 dBa

Weight

  • 24 - 36 lbs (10.0 - 18.6 kg)
