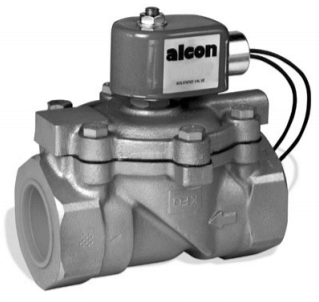

Hot Water Series Special Purpose Solenoid Valve
Brand: Alcon Solenoid Valves - by Rotork
Specifications
- Wide Range of Available Product
- Specifically Designed for Hot Water Temperature up to 248° F
- Choice of Brass or Stainless Steel Valve Body
Specifications
Approvals & Certifications
- CSA
- UL
Electrical Connectors
- 1/2” NPT Female Conduit Hub with 18” Leads
Enclosure, Body Material
- 1-1/4” to 2”: Bronze
- 3/8” to 1”: Brass
- Stainless Steel
Environmental Protection
- Din Connector: NEMA 4
- Metal Enclosure: NEMA 2
Seal Material
- EPDM at 0° to 120° C (32° to 248° F)
Ambient Temperature
- -10° to 50° C (14° to 122° F)
Coil Insulation
- Class H Suitable for Continuous Duty
Elelctrical Connection
- 9 mm Din Connector (DIN 43650)
- 1/2” NPT Conduit Hub with 18” Leads
