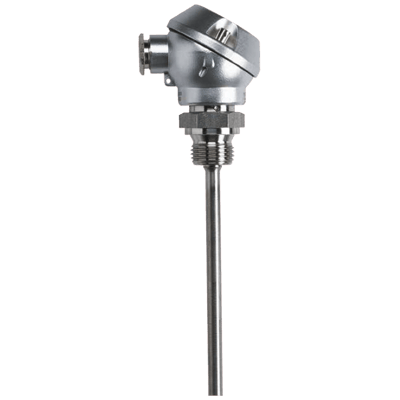

TWE-3 Screw-In Resistance Thermometer
Brand: KOBOLD Instruments, Inc
The screw-in resistance thermometers comprise a rugged sensor made of stainless steel with fixed or sliding thread. The electrical connection is made with a connecting lead or a connection head of form MA. Depending on the version, the connecting leads are suitable for dry or moist rooms.
The junction between connecting lead and protective tube is strain relieved and is fitted with bend protection.
Protective tube and process connection are made of stainless steel.
Pt100 temperature sensors according to IEC 751, class B are used as standard. Other classes or versions are also available with Pt500 and Pt1000.
These sensors are available as single or double resistance thermometers. The screw-in resistance thermometers are available in two, three or four-wire circuitry.
Specifications
Applications
- Building Commissioning
- Furnace Draft
- Heating Equipment
- Industrial Service
- Machine Construction
- Temperature Measurement
Cable Length
- 8.2 feet (2.5 metres) Standard
Cable Material
- Stainless Steel
Connection Material
- Glass Fibre
Electrical Connectors
- Braided Cable, 0.22 mm²
Materials of Construction
- 316Ti Stainless Steel - Protective Tube & Process Connection
Metric Connection
- M8 Male
Sensor / Probe Connection
- 2-Wire
- 3-Wire
- 4-Wire
Sensor / Probe Type
- Pt100
- Pt1000
- Pt500
Temperature Range
- -200° to 600° C (-325° to 1,100° F)
