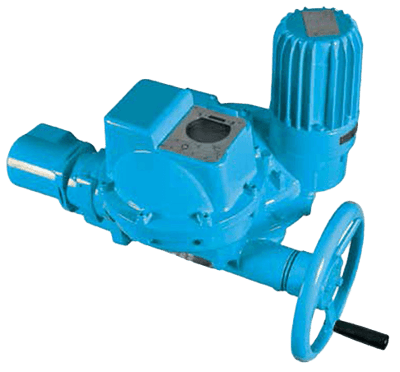

Cameron Electric Actuator, DiM
Images are representations only.

DiM Electric Actuator

Brand: Cameron
Request Information
Favorite

LEDEEN series DiM electric actuator for on/off or modulating control of any multi-turn, partial turn, or linear valve in oil and gas applications.
Features
  • Enclosed motor
  • Handwheel
  • Transmission
  • Controls/sensors
  • Electrical connection
  • Valve connection

View Details

Specifications

Brand

Approvals & Certifications

  • ATEX II 2 G Ex d E IIC T4 or Ex d E IIB T3, Directive 94/9/EC-EN 60079-0: 2012, EN 60079-1: 2007, EN 60079-7: 2007, EN 60079-31: 2014

Approvals & Certifications

  • SIL Certification

Communication

  • Bluetooth
  • DeviceNet Bus
  • FOUNDATION Fieldbus
  • HART
  • Modbus RTU
  • PROFIBUS (DP V0 -V1 -V2)

Consumption

  • Current Consumption at Rated Torque, Modulating Duty: 0.46-16 A
  • Current Consumption at Rated Torque, On-Off Duty: 0.46-41.50 A

Current

  • Rated Current, Modulating Duty: 0.53-11.10 A
  • Rated Current, On-Off Duty: 0.53-18.70 A

Display

  • Graphic LCD Display

Environmental Protection

  • IP68

Flange Size - F07

  • F07 DIN EN ISO 5210

Flange Size - F10 (G0)

  • F10 DIN EN ISO 5210
  • G0 DIN 3210

Flange Size - F14 (G1/2)

  • F14 DIN EN ISO 5210
  • G1/2 DIN 3210

Flange Size - F16 (G3)

  • F16 DIN EN ISO 5210
  • G3 DIN 3210

Power

  • Rated Power, Modulating Duty 50/60 Hz: 0.12-3.60 KW
  • Rated Power, On-Off Duty 50/60 Hz: 0.12-10 KW

Speed

  • Actuator Speed, Modulating Duty 50/60 Hz: 5 to 48 rpm
  • Actuator Speed, On-Off Duty 50/60 Hz: 5 to 192 rpm

Temperature Range

  • -25° to 60° C (-13° to 140° F) - Typical NT
  • -55° to 40° C (-67° to 104° F) - Typical LT

Torque

  • Maximum
  • Torque Adjustment Range, Modulating Duty: 132.76 to 8,850 In/Lbs
  • Torque Adjustment Range, On-Off Duty: 88.50 to 17,701 In/Lbs
