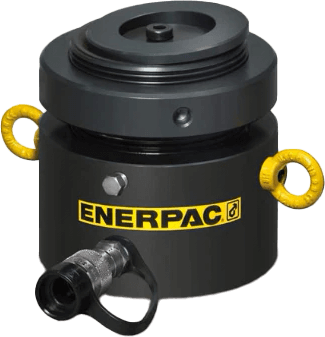

LPL1602, 179 ton Capacity, 1.77 in Stroke, Low Height, Lock Nut Hydraulic Cylinder
Brand: EnerpacEnerpac hydraulic cylinders are available in hundreds of different configurations.
Whatever the industrial application; lifting, pushing, pulling, bending, holding, whatever the force capacity, stroke length, or size restrictions, single- or double-acting, solid or hollow plunger, you can be sure that Enerpac has the cylinder to suit your high force application.
Enerpac jacking cylinders fully comply to ASME B30.1 (except RD-Series).
Features- Lock nut provides mechanical load holding for a safe work environment
- Integrated tilt saddle allows for up to 5 degrees of misalignment
- Extreme low-height for use in confined areas
- 8% side-load resistance of maximum capacity
- Overflow port as stroke limiter to prevent plunger blow-out
- Single-acting, gravity-return
Specifications
Brand
Maximum Operating Pressure (psi)
- 10,150
Capacity Class (Tonnage)
- 150
Maximum Cylinder Capacity Advance (Tons)
- 179
Stroke (inch)
- 1.77
Collapsed Height A (inch)
- 5.83
Extended Height B (inch)
- 7.6
Return Type
- Single-Acting
- Load Return
Plunger Type
- Solid
Material
- Steel
Cylinder Effective Area Advance (in²)
- 35.18
Oil Capacity Advance (in³)
- 62.3
Sideload Resistance of Maximum Capacity (Percentage)
- 8%
Surface Treatment
- Nitride
Weight (Lbs)
- 94
