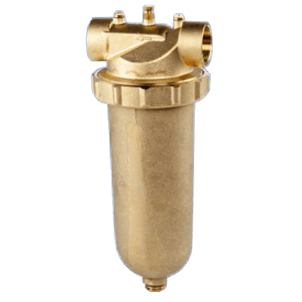

MFT-I Adapter Magnetic Filter

Brand: KOBOLD Instruments, Inc

KOBOLD magnetic filters are used in many applications, including central system filters, where it is necessary to protect devices from dirt and contamination.

They are used to catch and remove contaminants from industrial cooling and lubrication circuits, especially where residue and sediment from assembly (such as chips from thread-cutting) and normal operation (such as scale and residue from frictional wear) can be carried along in the medium being filtered.

Contaminants of these types can form deposits that can cause pitting and corrosion in highly sensitive measuring and control devices.

Regular maintenance and cleaning of the magnetic filter inserts will effectively prevent system and device failure and the resulting downtime.

Models matching criteria: 4
  • Version - Female Thread Adapter
  • Connection - Rp 1"
100+ In Stock
$1,518.00 CAD
Does not ship to OH, United States
  • Version - Female Thread Adapter
  • Connection - Rp 1-1/2"
25+ In Stock
$1,523.00 CAD
Does not ship to OH, United States
  • Version - Female Thread Adapter
  • Connection - RP 2"
9 In Stock
$1,436.00 CAD
Does not ship to OH, United States
  • Version - Female Thread Adapter
  • Connection - RP 1-1/4"
7 In Stock
$2,330.00 CAD
Does not ship to OH, United States

Specifications

BSP Connection

  • 1” BSPP Female
  • 1-1/2” BSPP Female
  • 1-1/4” BSPP Female
  • 2” BSPP Female

Enclosure, Body Material

  • Brass

Filter

  • Mesh Size: 600 μm

Gasket Material

  • Klinger Sil C-4300

Materials of Construction

  • Oxide Ceramic - Magnets
  • Stainless Steel - Filter Cartidge

Mounting Position

  • Horizontal

Nominal Pressure

  • psi: 145 (bar: 10, kPa: 1,000)

Supply Pressure - Maximum

  • psi: 580 (kPa: 4,000, bar: 40)

Temperature Range

  • 90° C (194° F) - Max.
