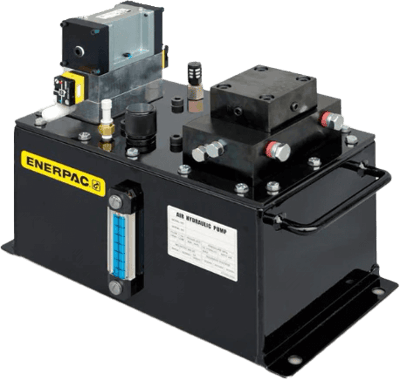

ZAJ Series - Air Hydraulic Pump, Single/Dual 3/2 Solenoid Valve & Pressure and Tank Manifold

Brand: Enerpac
Request Information
Favorite

download1.png www.enerpac.png
Product Lines: Workholding Tools
Features
  • These heavy-duty air driven pumps are well suited for use in production applications
  • Suited for use in production applications
  • 3.8 litre steel reservoir with sight glass, mounting flange
  • Pressure and tank manifold for use with remote mounted valves
  • 3-way, 2-position, normally closed solenoid valve for use with double-acting circuits

View Details

Specifications

Brand

Maximum Operating Pressure

  • 5,000 psi (350 bar)

Cylinder Compatibility

  • Single-acting
  • Double-Acting

Reservoir Capacity

  • 231 in³ (3800 cm³)

Usable Oil Capacity

  • 3.8 litres

Maximum Flow at Rated Pressure

  • 62 in³/min (1.0 litres/min)

Output Flow Rate 100 psi

  • 124 in³/min

Output Flow Rate 2000 psi

  • 62 in³/min

Power Source

  • Air

Valve Operation

  • Solenoid

Solenoid Valve Voltage

  • 24 Vdc

Valve Type

  • 3-Way, 2-Position

Air Pressure Range

  • 1.0 - 6.9 bar (15 - 100 psi)

Air Consumption

  • 510 litres/min (18 scfm)

Oil Ports

  • 3/8” NPT

Weight

  • 49 lbs (22.2 kg)
