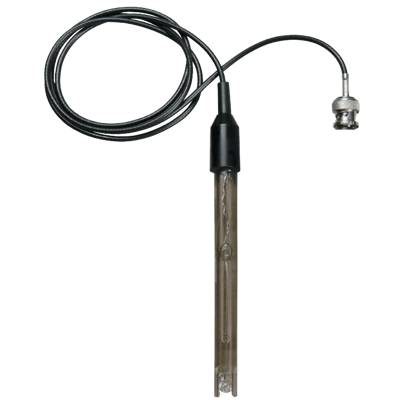

pH-Electrode for HND-R

Brand: KOBOLD Instruments, Inc

The KOBOLD hand-held pH, Redox and temperature measuring units of the HND-R106 model are compact and universally applicable measuring units for electrodes with BNC plug connection.

An extensive selection of electrodes makes it possible to use the HND-R106 in almost all application areas.

The KOBOLD HND-R106 measuring unit offers functions like minimum/maximum value memory, hold function, auto off function and automatic temperature compensation.

In addition to pH, Redox and temperature measurement, the device can display the relative humidity value. This is calculated from the measured Redox-value and the previously measured or manually entered pH-value.

Models matching criteria: 7
100+ In Stock
$403.00 CAD
Does not ship to OH, United States
50+ In Stock
$505.00 CAD
Does not ship to OH, United States
50+ In Stock
$2,028.00 CAD
Does not ship to OH, United States
50+ In Stock
$1,858.00 CAD
Does not ship to OH, United States
25+ In Stock
$477.00 CAD
Does not ship to OH, United States
25+ In Stock
$1,890.00 CAD
Does not ship to OH, United States
24 In Stock
$531.00 CAD
Does not ship to OH, United States

Specifications

Accuracy

  • ± 0.01 pH
  • ± 0.1 RH
  • ± 0.1 % of Full Scale (mV) - Redos (ORP)
  • ± 0.2° C (± 0.4° F) for -20° to 80° C (-4° to 176° F), Otherwise ± 0.4° C (± 0.7° F)
  • ± 1-Digit at Nominal Temperature 25° C (77° F)

Approvals & Certifications

  • CE

Cable Length

  • 6.56 feet (2 metres)

Conduit Connection

  • PG 13.5

Diaphragm Material

  • Ceramic

Dimensions

  • 5.59” x 2.8” x 1.02” {142 x 71 x 26 mm (H x W x D)}

Display

  • 4-Digit LCD Display

Enclosure / Body Material

  • ABS Plastic

Environmental Protection

  • IP65

Humidity

  • 0 to 95 % Relative Humidity, Non-Condensing - Storage Humidity

Output

  • Serial Interface

Storage Temperature

  • -20° to 70° C (-4° to 158° F)

Supply Voltage

  • 9 V- Monobloc Battery
  • External 10.5-12 Vdc Via Jack

Temperature Range

  • -5° to 150° C (23° to 302° F) - Measuring Range
