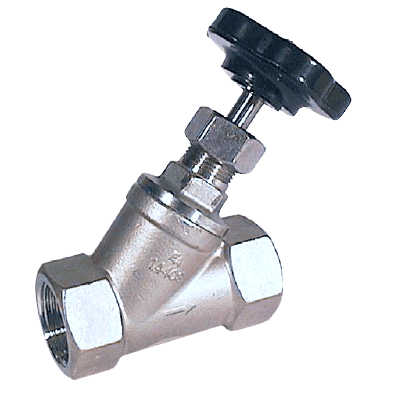

NAD-AD Stainless Steel Angle-Seat Valve
Brand: KOBOLD Instruments, IncDesign
Two-part screwed body.
Technical Details
- Connections: Rp 1/2" to 2" Female (According to DIN 2999), Weld Ends DN 15 to DN 50 (According to DIN 3239)
- Temperature Range: -20° to 180° C (-4° to 356° F)
- Nominal Pressure: psi: 232.1 (bar: 16, kPa: 1,600)
- Operation: Rotation of Hand Wheel
Materials
- Body: Stainless Steel 1.4408
- Cover: Stainless Steel 1.4408
- Metallic Internal Parts: Stainless Steel 1.4404
- Gasket: PTFE
- Mounting position: Any, Note Specified Direction of Flow
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 12
- Process Connection - Rp 3/4" Female
100+ In Stock
$1,450.00 CAD
Does not ship to OH, United States
- Process Connection - DN 50 Weld Ends
100+ In Stock
$853.00 CAD
Does not ship to OH, United States
- Process Connection - DN 40 Weld Ends
100+ In Stock
$344.00 CAD
Does not ship to OH, United States
- Process Connection - Rp 1-1/2" Female
50+ In Stock
$714.00 CAD
Does not ship to OH, United States
- Process Connection - DN 25 Weld Ends
50+ In Stock
$75.00 CAD
Does not ship to OH, United States
- Process Connection - Rp 1-1/4" Female
50+ In Stock
$1,238.00 CAD
Does not ship to OH, United States
- Process Connection - DN 20 Weld Ends
50+ In Stock
$712.00 CAD
Does not ship to OH, United States
- Process Connection - Rp 1/2" Female
50+ In Stock
$1,297.00 CAD
Does not ship to OH, United States
- Process Connection - DN 32 Weld Ends
50+ In Stock
$2,219.00 CAD
Does not ship to OH, United States
- Process Connection - Rp 2" Female
25+ In Stock
$1,128.00 CAD
Does not ship to OH, United States
- Process Connection - DN 15 Weld Ends
15 In Stock
$625.00 CAD
Does not ship to OH, United States
- Process Connection - Rp 1" Female
15 In Stock
$1,402.00 CAD
Does not ship to OH, United States
Specifications
BSP Connection
- 1” BSPP Female
- 1/2” BSPP Female
- 1-1/2” BSPP Female
- 1-1/4” BSPP Female
- 2” BSPP Female
- 3/4” BSPP Female
Cover Material
- 316 Stainless Steel
Enclosure, Body Material
- 316 Stainless Steel
Gasket Material
- PTFE
Internal Part Material
- 316L Stainless Steel
Maximum System Pressure
- psi: 232.1 (bar: 16, kPa: 1,600)
Mounting Position
- Any Orientation
Operation
- Rotation of Hand Wheel
Temperature Range
- -20° to 180° C (-4° to 356° F)
Valve Type
- Manual
Welded Connection
- DN 15 Weld End
- DN 20 Weld End
- DN 25 Weld End
- DN 32 Weld End
- DN 40 Weld End
- DN 50 Weld End
