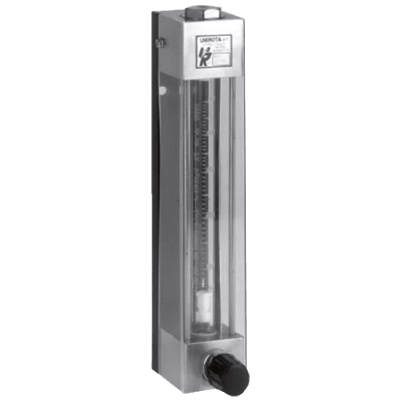

UMR/UXR/URA Variable Area Flowmeter
Brand: KOBOLD Instruments, Inc
The Flow Meters and Switches for low flows model UMR and UXR for liquids and air operate on the suspended float principle: that is, the installation position is vertical and the direction of flow is from bottom to top.
The instruments have been designed as simple and for economical measuring systems. The float for UMR is a ball, whereby the indication point is the middle of the ball.
The float for UXR is a bomb form float, whereby the indication point is the top of the float. The instruments are available with or without needle valve as well.
The models UMR and URA are similar with one difference: model URA is a footed structure used mainly in schools and laboratories where they are fitted on top of desks.
Specifications
Accuracy
- Class 4
Ambient Temperature Range
- 0° to 100° C (32° to 212° F)
BSP Connection
- G 1/4” Male
Connection Material
- 304 Stainless Steel
- 316 Stainless Steel
- Nickel-Plated Brass
- POM - C
Connectors
- Hose Ports
Electrical Connectors
- 2 metres Cable
Enclosure / Body Material
- 304 Stainless Steel
- 316L Stainless Steel
- POM - C
Environmental Protection
- IP65
Flow Rate
- 0.01 to 2.5 Nm³/hour to Air
- 1 to 130 L/hr to Water
Gasket Material
- EPDM
- FPM
- NBR
- Silicone
Materials of Construction
- 304L Stainless Steel
- 316 Stainless Steel - Valve, Float, Fitting
- Aluminum - Float
- Borosilicate Glass - Measuring Tube
- Polypropylene - Float
- POM-C - Fitting Material
- PTFE - Float, Float Stop
- PVC - Float
Maximum System Pressure
- psi: 232.1 (kPa: 1,600, bar: 16)
Media
- Air
- Water
Mounting Position
- Vertical, Flow from Bottom
NPT Connection
- 1/4” NPT Female
Switch Type
- Proximity
Temperature Range
- Maximum
