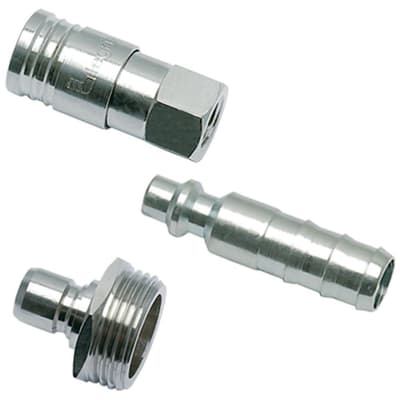

Legris Metal Quick-Acting Coupler
Images are representations only.

Metal Quick-Acting Coupler

Brand: Legris - by Parker
Request Information
Favorite

Parker Legris offers a range of metal couplers compatible with a large selection of fluids.

Simple to install, with or without shut-off valves, these couplers offer a high flow rate capability.
Features
Easy-to-Use
  • Coupler with sliding sleeve: automatic connection and disconnection
  • Wide variety of male probes
  • Extremely compact
  • Single or double shut-off models for greater safety
  • Special range designed for pneumatic applications: 13 Series to 27
  • Special range designed for the transmission of water and fluids: Midi and Maxi series
Robust & Reliable
  • 100% leak-tested in production
  • Excellent shock and impact resistance
  • Nickel-plated brass for corrosion resistance
  • Stainless steel version for restrictive environments
Optimum Performance
  • Very wide range of flow rates
  • "UltraFlo" technology: 18, 22, 23, 25 and 27 series
  • Low pressure drop
  • Long service life
  • Maximum energy efficiency

View Details

Specifications

Brand

Applications

  • Assembly Machines
  • Packaging
  • Ejection
  • Cooling
  • Robotics
  • Automotive Process
  • Manufacturing Workshops

Box Quantity

  • 1 to 10

Diameter Nominal

  • 2.0 to 19 mm

End Fitting Type

  • Push-to-Connect
  • Female Thread
  • Metric Straight Thread
  • BSPP
  • BSPT
  • Hose Barb
  • Male Thread

Flow Rate

  • 165-8500 L/min

Handle

  • Nickel-Plated Brass

Material

  • Zinc-Plated Blister Steel
  • Nickel-Plated Brass

Maximum Working Pressure

  • 20 bar
  • 290.075

Maximum Working Temperature

  • 212° F
  • 100° C

Media

  • Water Pistol: Water, Oil, Industrial Fluids
  • Metal Blowgun: Compressed Air, Industrial Fluids

Seal Material

  • NBR

Vacuum Rating

  • 655 mm-Hg

Valve Style

  • No Valve

Weight

  • 0.01 to 0.155 kg

  • Compressed Air and Water Circuits Automatic Connection and Disconnection
  • Workshops
  • Flushing
  • Spraying
  • Filling Systems
  • Cleaning
